Component Location Index

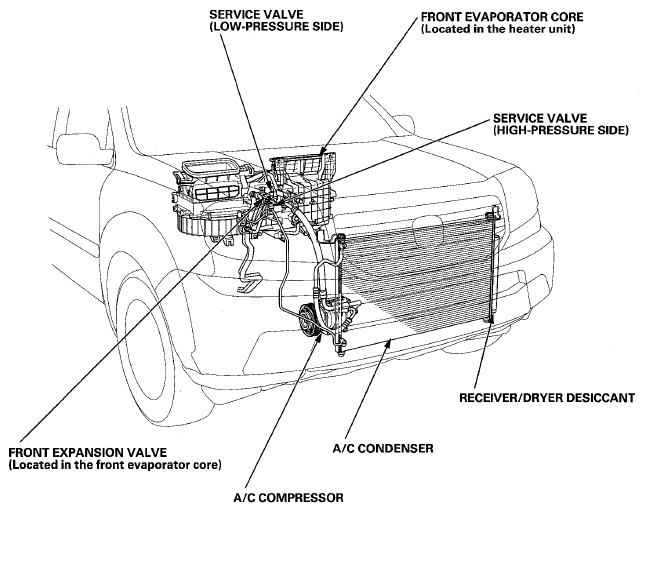

Fig 1: Identifying Heating/Air Conditioning Components Location (1 Of 3)
G08090152Courtesy of AMERICAN HONDA MOTOR CO., INC.

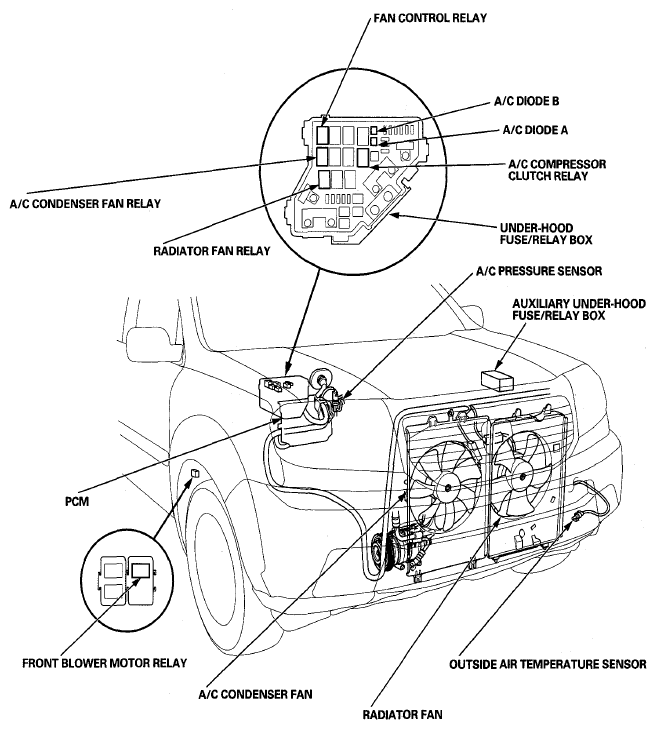

Fig 2: Identifying Heating/Air Conditioning Components Location (2 Of 3)
G08090153Courtesy of AMERICAN HONDA MOTOR CO., INC.

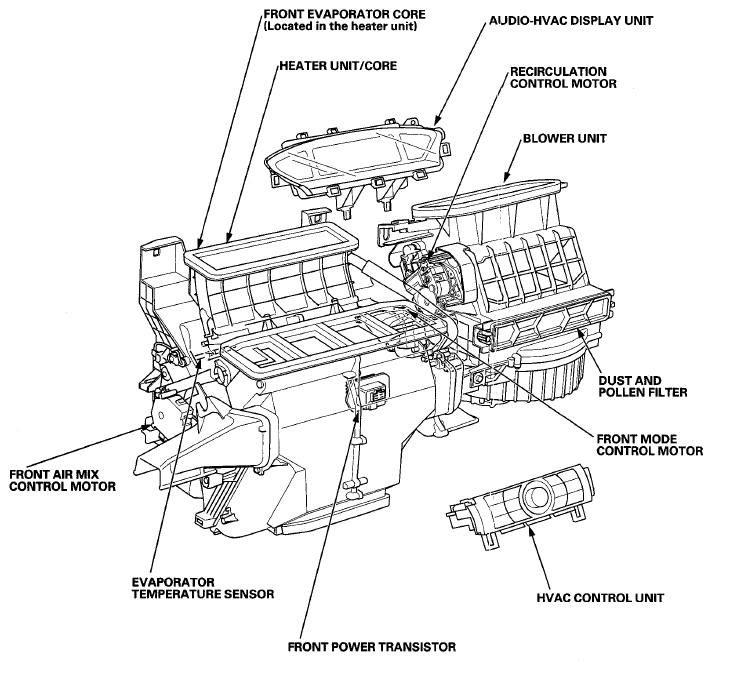

Fig 3: Identifying Heating/Air Conditioning Components Location (3 Of 3)
G08090154Courtesy of AMERICAN HONDA MOTOR CO., INC.
