Initiator Replacement: Front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure the initiator mounting bracket is not bent or twisted as this may affect its communication with the TPMS control unit and the tire pressure sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).
  3. Remove the front wheel.
  4. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  5. Disconnect the initiator connector (A).

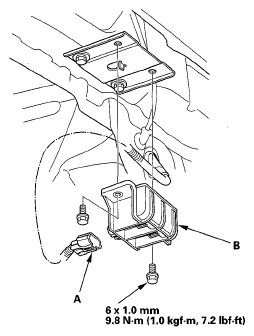

    Fig 1: Initiator Connector And Bolts With Torque Specifications
    G05965340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the inner side of the wheel well.
  7. Install the initiator in the reverse order of removal.
