Circuit Diagram

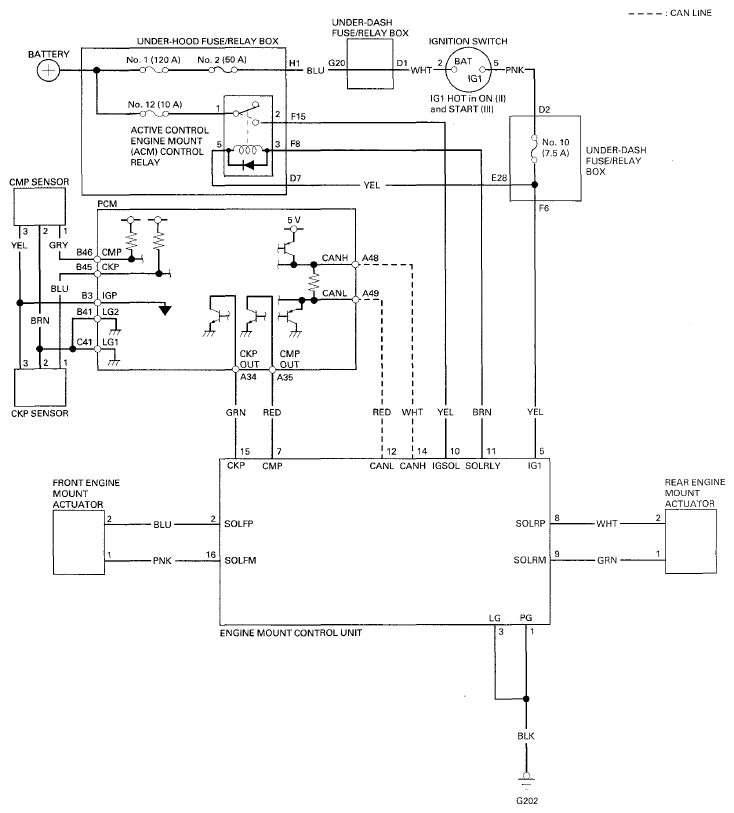

Fig 1: Front Engine Mount Actuator Circuit Diagram

G08078497

Courtesy of AMERICAN HONDA MOTOR CO., INC.
