Start-Up Procedure and Diagnostic Menu
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Check the vehicle 12 volt battery condition first .
1. Start the engine
2. At any screen except the HOME screen, use the audio unit buttons:
NOTE:
When HOME screen is displayed, the HOME button illumination goes out, and is hard to check. Press and hold the EJECT button, the POWER (
) button, and the HOME button until the Select Diagnosis Items menu screen is displayed:
- Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
- Detail Information & Setting (allows you to manually diagnose the navigation system)

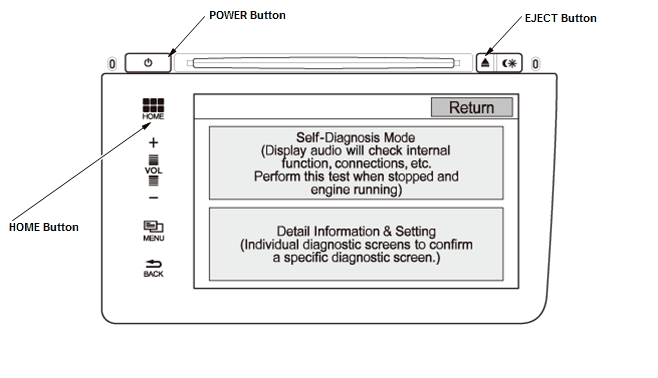

Displaying Select Diagnosis Items Menu Screen
