Navigation System Description - System Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

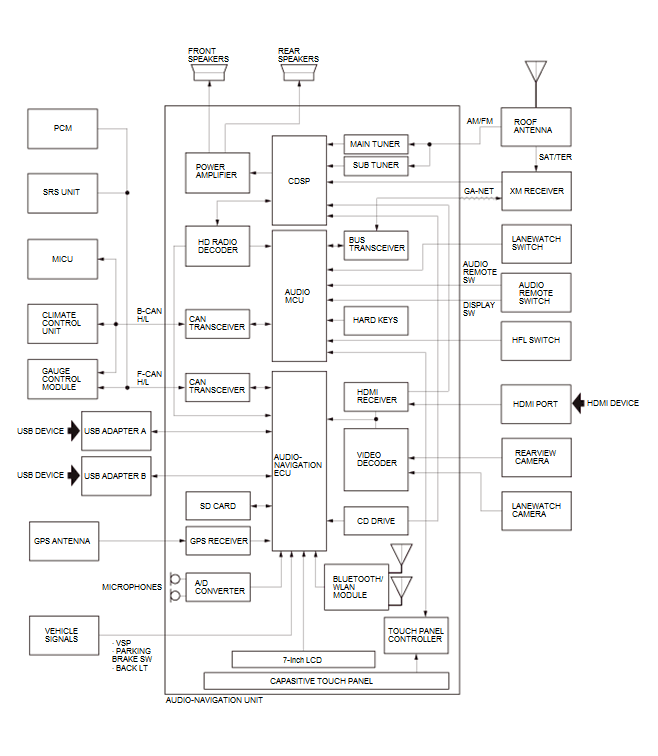

GHH79304Courtesy of HONDA, U.S.A., INC.

Power Supply Diagram

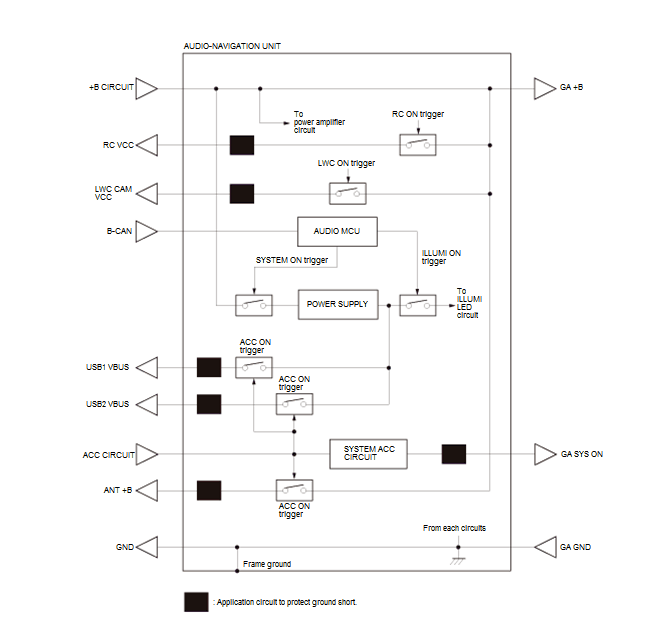

GHH79305Courtesy of HONDA, U.S.A., INC.
