System Initialization

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

If the navigation system loses power (like the 12 volt battery was disconnected), the navigation system requires initialization. Once completed, your system is ready to use.

This initialization requires the following:

Press and hold the POWER button for at least 2 seconds. The audio-navigation unit exits the anti-theft mode. Or you can enter the 5-digit anti-theft code.
GPS initialization (may not be needed depending of the length of time the system was without power).
Map matching aligns the GPS to a location on the map.

GPS Initialization

NOTE: You must park the vehicle outside with a clear view of the sky.

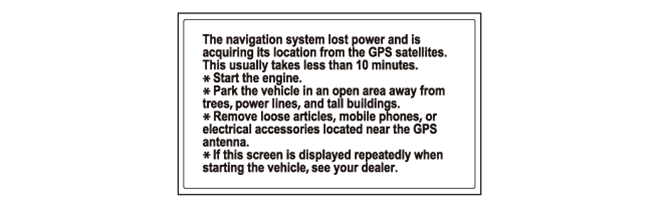

Depending on the length of time the battery was disconnected, your system may require GPS initialization. If it does, the CSF screen appears:

Courtesy of HONDA, U.S.A., INC.

If this procedure is not necessary, the system proceeds directly to the Disclaimer screen. During initialization, the system searches for all available GPS satellites, and obtains their orbital information. Park the vehicle out in the open with a clear view of the sky for this procedure.

If the navigation system finds the satellites properly, the CSF screen changes to the Disclaimer screen. If within 10 minutes the system fails to locate a sufficient number of satellites to locate your position, the confirmation screen appears.

Courtesy of HONDA, U.S.A., INC.

If this screen appears, turn off the engine, then restart the vehicle and move it to a different location. If the Disclaimer screen appears, the GPS initialization is complete.

NOTE:

The average acquiring time is less than 10 minutes, but it can take as long as 45 minutes.
If the system is still unable to acquire a signal, follow the instructions on the screen. If this screen appears again, go to GPS icon is white or not shown troubleshooting.
Skip a CSF screen by pressing the DAY/NIGHT button and the HOME button at the same time and you can move to the Disclaimer screen.

Map Matching

This part of the initialization matches the GPS coordinates with a road on the map screen. To do this part of the procedure, make sure that the navigation system displays a map, and drive the vehicle on a mapped road shown on the map screen. Do not enter a destination at this time. When the name of the current road you are driving on appears at the bottom of the screen, the entire procedure is complete. Your system is now ready to use.
