A/T Countershaft Disassembly, Reassembly, and Inspection
>>
Exploded View
Exploded View
A/T Countershaft Exploded View
Exploded View

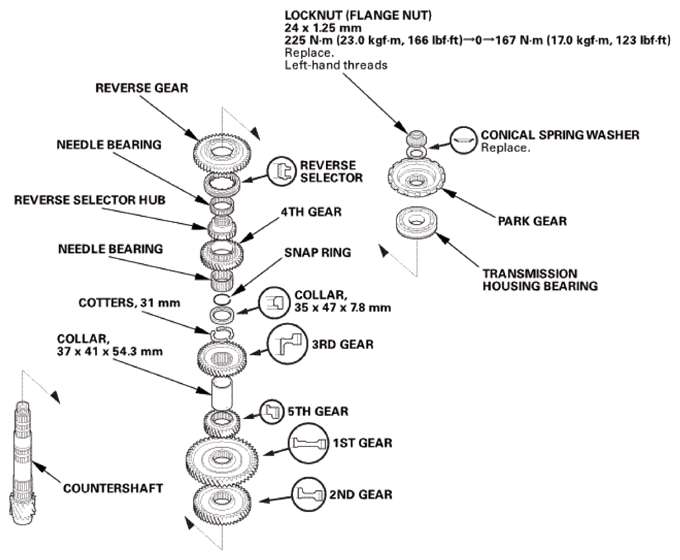

Fig 1: Exploded View Of A/T Countershaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
