Park Pin Switch Test: Installation

Center Console
1. Install the center console (A).

  Fig 1: Locating Center Console
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

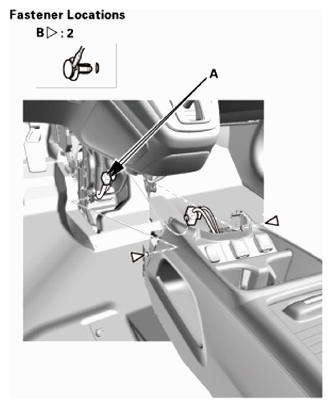

2. Connect the connectors (A), and install the clips (B).

  Fig 2: Locating Connectors And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

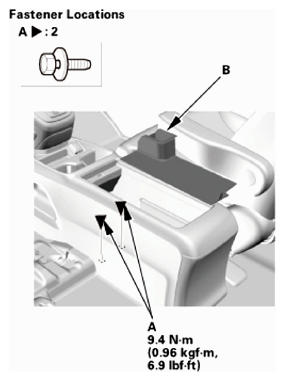

3. Install the bolts (A), then install the console box mat (B).

  Fig 3: Locating Bolts And Console Box Mat
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

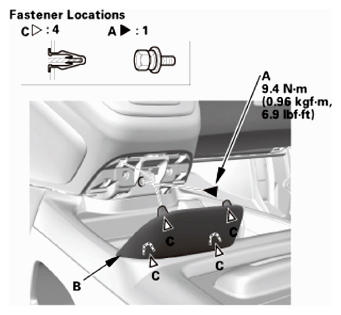

4. Install the bolts (A).

  Fig 4: Locating Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

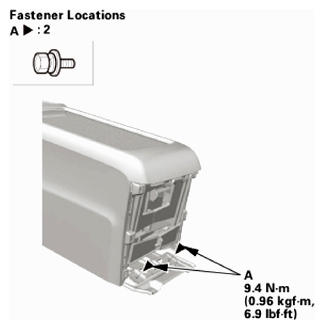

5. Install the bolt (A), then install the center lower cover (B). Make sure the clips (C) snap into place securely.

  Fig 5: Locating Bolt, Center Lower Cover And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Center Console Rear Trim

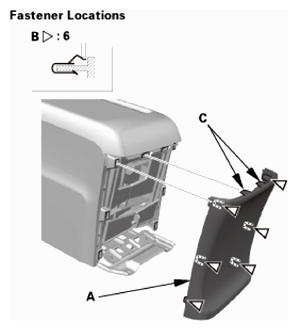

1. Install the center console rear trim (A). Make sure the clips (B) and the hooks (C) snap into place securely.

  Fig 6: Locating Center Console Rear Trim, Clips And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Console Cover - Both Sides
1. Install the front console covers (A). Make sure the clips (B, C) snap into place securely.
  Left side

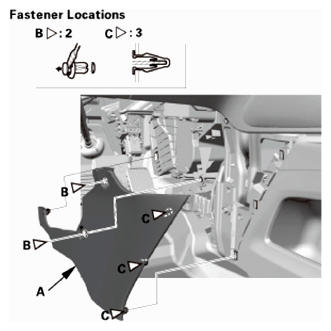

  Fig 7: Identifying Front Console Covers And Clips - Left Side
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Right side

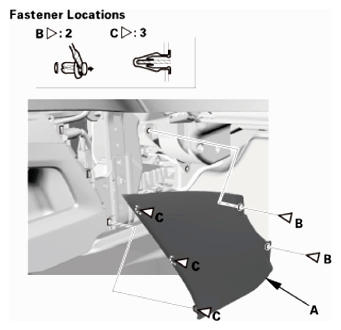

  Fig 8: Identifying Front Console Covers And Clips - Right Side
