ATF Temperature Sensor Test: Installation

  1. Front Splash Shield
    1. Install the front splash shield (A), then install the bolts (B) and the clips (C, D). Make sure the clips snap into place securely.

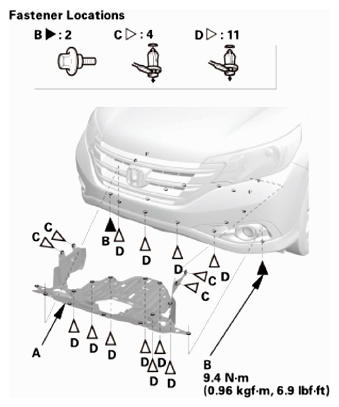

      Fig 1: Identifying Front Splash Shield, Bolts And Clips
      G08879349Courtesy of AMERICAN HONDA MOTOR CO., INC.
