Shift Lock Release and Release Spring Removal and Installation: Removal

Shift Lever Panel (AT)

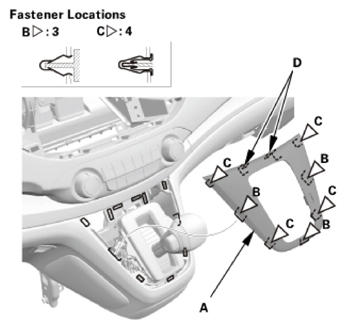

1. Carefully pry out the shift lever panel (A) with the appropriate trim tool to detach the clips (B, C) and the hooks (D), then remove the shift lever panel.

  Fig 1: Identifying Shift Lever Panel Clips And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

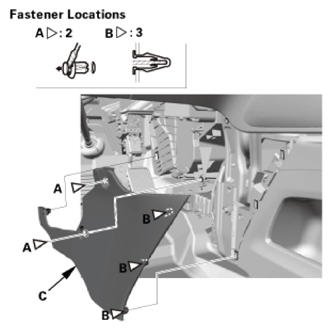

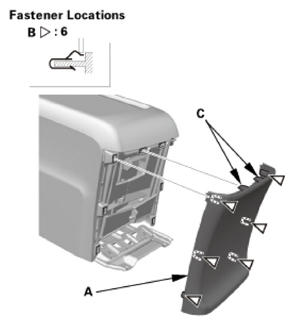

Front Console Cover - Both Sides

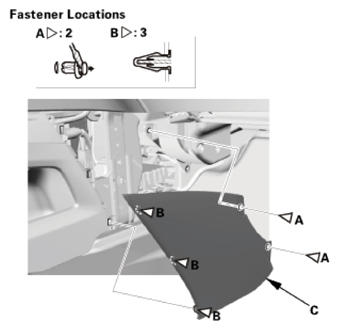

1. Remove the clips (A).
2. Detach the clips (B), then remove the front console covers (C).
  Left side

  Fig 2: Identifying Front Console Covers And Clips (Left Side)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Right side

  Fig 3: Identifying Front Console Covers And Clips (Right Side)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

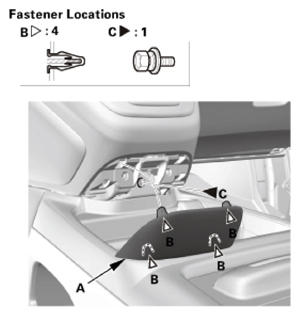

Center Console Rear Trim
1. Carefully pry out the center console rear trim (A) with the appropriate trim tool to detach the clips (B) and the hooks (C), then remove the center console rear trim.

  Fig 4: Identifying Center Console Rear Trim, Clips And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Center Console
1. Carefully pry out the center lower cover (A) with the appropriate trim tool to detach the clips (B), then remove the center lower cover.
2. Remove the bolt (C).

  Fig 5: Identifying Center Lower Cover, Clips And Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

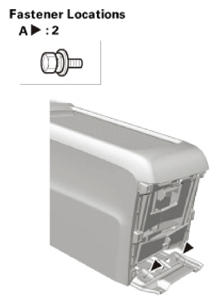

3. Remove the bolts (A).

  Fig 6: Identifying Center Console Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

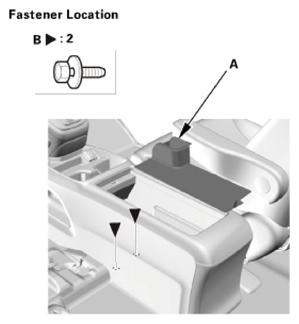

4. Remove the console box mat (A), then remove the bolts (B).

  Fig 7: Identifying Console Box Mat And Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

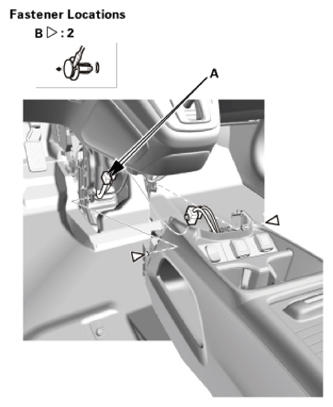

5. Disconnect the connectors (A), and remove the clips (B).

  Fig 8: Identifying Connectors And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

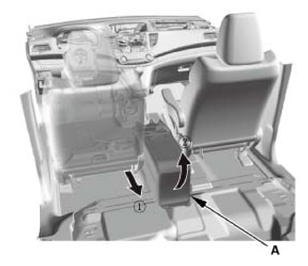

6. Slide both front seats fully rearward, and recline the seat-backs around two thirds to the rear.
7. Remove the center console (A).

  Fig 9: Removing Center Console
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Center Maintenance Cover

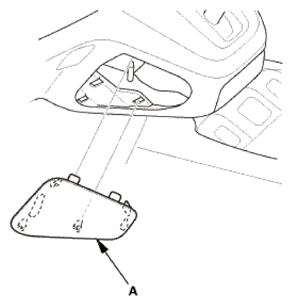

1. Remove the maintenance cover (A).

  Fig 10: Identifying Center Maintenance Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

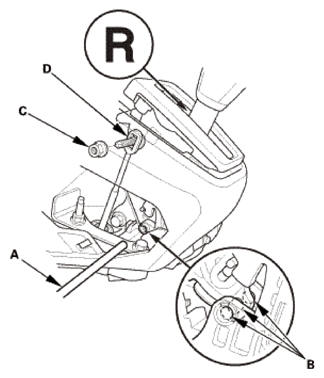

Shift Cable - Disconnection Lever Side
1. Shift the shift lever to R.
2. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).
  NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs.
3. Remove the nut (C) securing the shift cable end (D).

  Fig 11: Inserting Pin Into Positioning Holes
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Unlock the retainer lock (A).

  Fig 12: Unlocking Retainer Lock
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

  Fig 13: Rotating Socket Holder Retainer Counterclockwise
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C).
  NOTE: Do not remove the shift cable by pulling the shift cable guide (D).

  Fig 14: Removing Shift Cable From Shift Cable Bracket
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
A/T Shift Lever Assembly
1. Disconnect the shift lever connector.

  Fig 15: Identifying Shift Lever Connector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

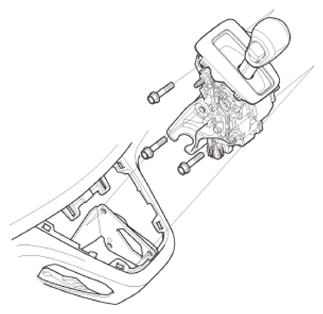

2. Remove the shift lever assembly.

  Fig 16: Identifying Shift Lever Assembly
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
D3 Switch Harness - Disconnection
1. Remove the harness wire tie (A).
2. Disconnect the D3 switch connector (B).

  Fig 17: Identifying D3 Switch Connector And Harness Wire Tie
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

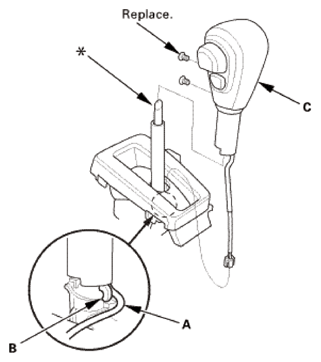

Shift Lever Knob/Shift Lever Knob Ring Assembly
NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble or assemble it.
1. Unhook the D3 switch harness (A) from the harness guide (B).
2. Remove the shift lever knob/shift lever knob ring assembly (C).

  Fig 18: Identifying D3 Switch Harness, Harness Guide And Shift Lever Knob/Shift Lever Knob Ring Assembly
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

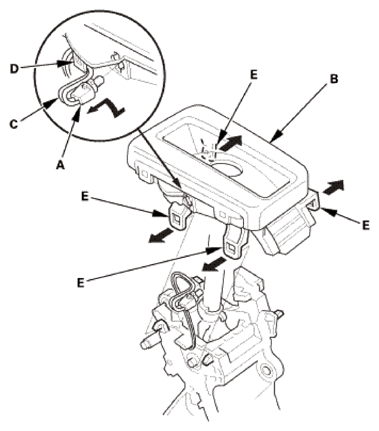

A/T Gear Position Indicator Panel Assembly
1. Remove the A/T gear position indicator panel light socket (A) from the A/T gear position indicator panel assembly (B).
2. Unhook the A/T gear position indicator panel light harness (C) from the harness guide (D).
3. Remove the A/T gear position indicator panel assembly by expanding the four lock tabs (E).

  Fig 19: Removing A/T Gear Position Indicator Panel Assembly
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Shift Lock Release

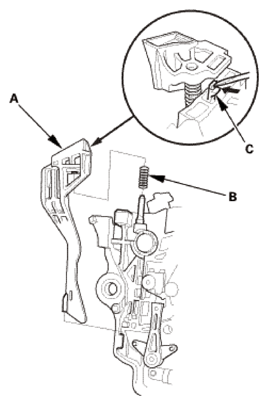

1. Remove the shift lock release (A) and the release spring (B) by pressing the lock tab (C).

  Fig 20: Pressing Lock Tab
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
