Immobilizer-Keyless Control Unit Replacement

WARNING: This page is about a different car, the 2011 Honda CR-V, 2010 Honda CR-V, 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  3. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).

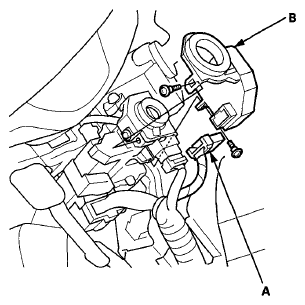

    Fig 1: Locating 7P Connector And Immobilizer-Keyless Control Unit
    G06612445Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws and the immobilizer-keyless control unit.
  5. Install the immobilizer-keyless control unit in the reverse order of removal.
  6. After replacement, register the immobilizer-keyless control unit (see IMMOBILIZER KEY REGISTRATION ), and make sure the immobilizer system works properly.
  7. Program all of the customer's keyless transmitters (see IMMOBILIZER KEY REGISTRATION ).
