WARNING: This page is about a different car, the 2011 Honda CR-V, 2010 Honda CR-V, 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

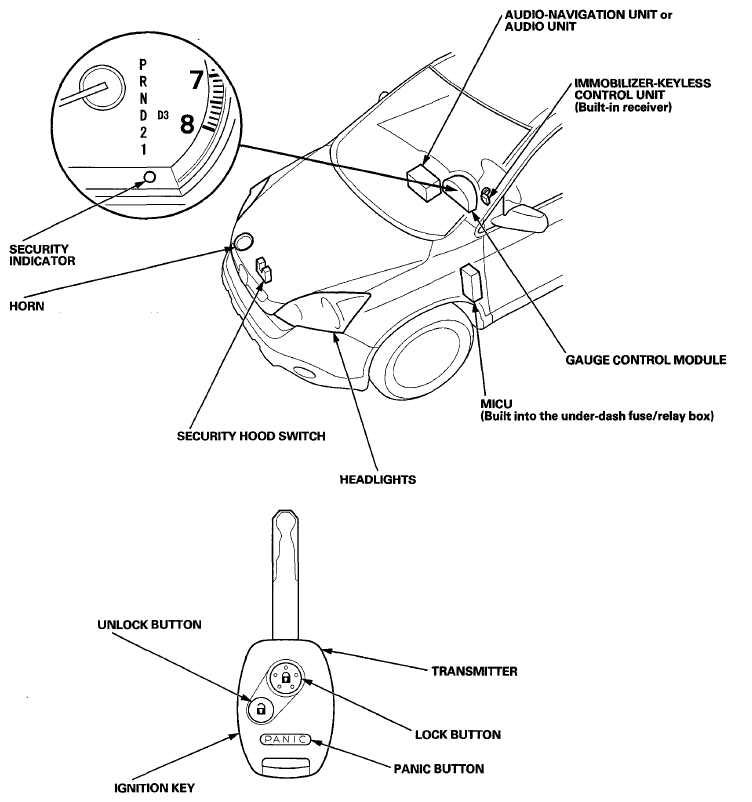

Fig 1: Identifying Keyless/Power Door Locks/Security System Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

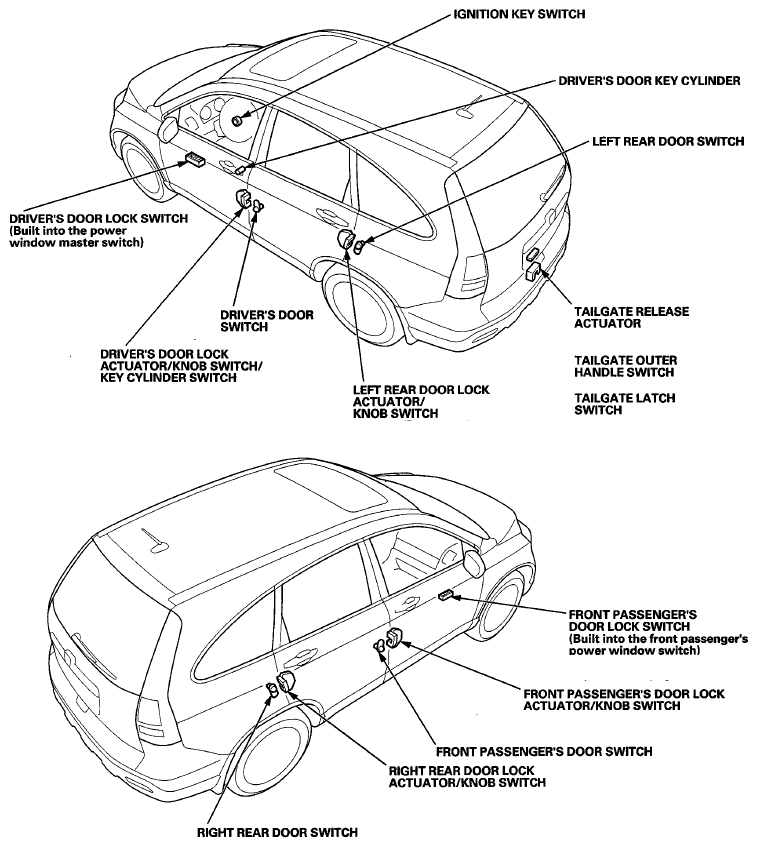

Fig 2: Identifying Keyless/Power Door Locks/Security System Components Location (2 Of 2)
