Front Power Window Motor Removal and Installation: Installation

Front Power Window Motor
NOTE: Screw threads are not tapped into the new power window motor. Install the new motor as follows, using the self-tapping screws (A) provided.

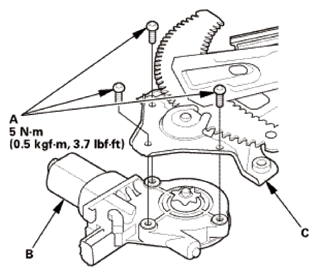

1. Position the power window motor (B) under the regulator (C) as shown, and tighten the self-tapping screws until the screw heads just make contact with the linkage.
  NOTE:
  - Keep the screws perfectly straight while screwing them in.
  - Do not use an air tool or impact wrench to install the screws.
  - Use only the self-tapping bolts provided with the motor.
2. Loosen the screws, then retighten them to the specified torque.

  Fig 1: Identifying Power Window Motor, Regulator And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Regulator
1. Apply multipurpose grease to the sliding surfaces of the regulator (A) where as shown.

  Fig 2: Identifying Multipurpose Grease Applying Area On Sliding Surfaces Of Regulator
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the regulator (A) through the hole in the door, then install the nuts (B) and the bolts (C, D).
3. Connect the connector (E) to the regulator.

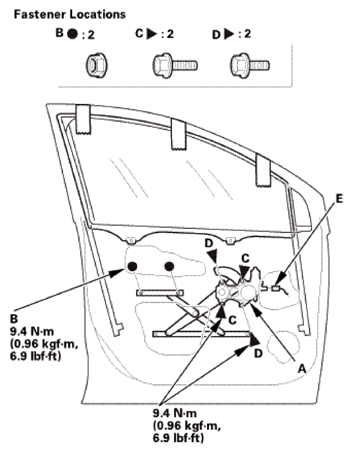

  Fig 3: Identifying Door Regulator, Connector, Nuts And Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Glass Support

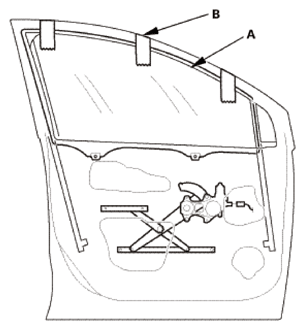

1. While holding the glass (A), remove the tape (B), then carefully lower the glass. Take care not to drop the glass inside the door.

  Fig 4: Holding Glass Using Tape
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

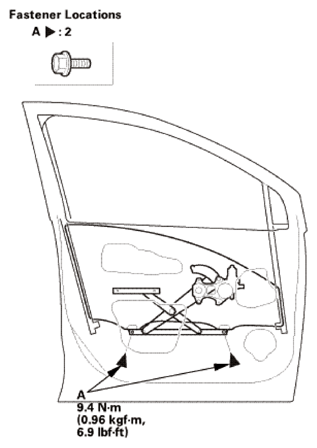

2. Install the glass mounting bolts (A).

  Fig 5: Glass Mounting Bolts With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Glass - Adjustment
1. Do the Front Door Glass Adjustment
Front Door Plastic Cover

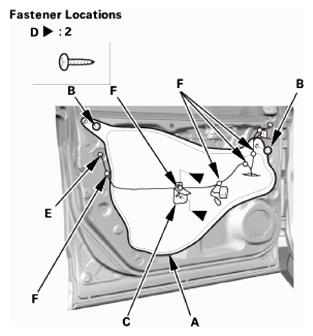

1. Install the plastic cover (A), then install the plug caps (B).
2. Install the pull pocket bracket (C), then install the screws (D).
3. Connect the connector (E), then install the harness clips (F).

  Fig 6: Identifying Connector, Pocket Bracket, Plug Caps, Plastic Cover, Harness Clips And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Panel
1. Install the inner handle (A) in the door panel (B).
2. Install the door panel. Make sure the clips (C) snap into place securely.

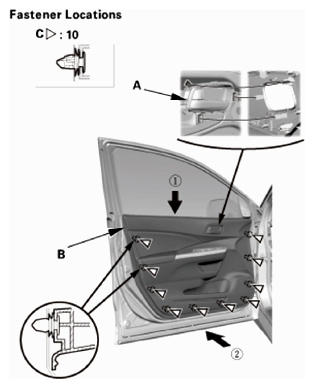

  Fig 7: Installing Inner Handle To Door Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the screw (A), then install the pull pocket mat (B).

  Fig 8: Identifying Pocket Mat And Screw
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

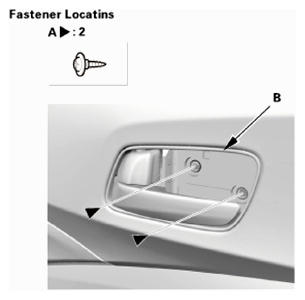

4. Install the screws (A) securing the inner handle (B).

  Fig 9: Identifying Inner Handle And Screw
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

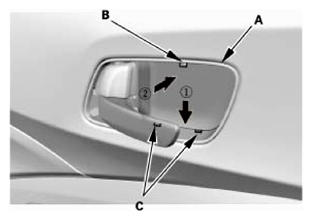

5. Install the inner handle cap (A). Make sure the upper hook (B) and the lower hooks (C) snap into place securely.

  Fig 10: Installing Inner Handle Cap
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Power Window Switch Panel

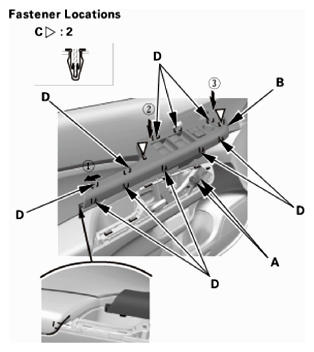

1. Connect the connectors (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

  Fig 11: Installing Power Window Switch Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Door Mirror Cover
1. With tweeter: Connect the connector (A).

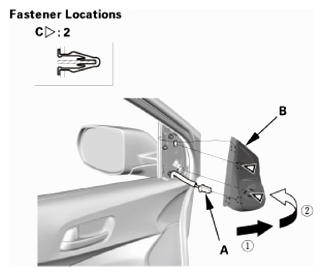

2. Install the door mirror cover (B). Make sure the clips (C) snap into place securely.

  Fig 12: Installing Door Mirror Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Power Window Control Unit - Reset
1. DO THE POWER WINDOW CONTROL UNIT RESETTING PROCEDURE .
