Multiplex Integrated Control System Component Location Index (2017)

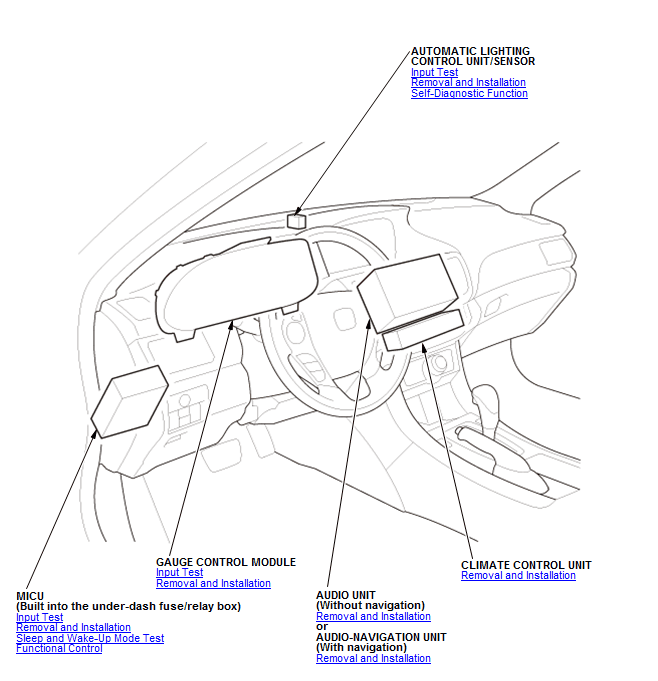

GHH260795Courtesy of HONDA, U.S.A., INC.

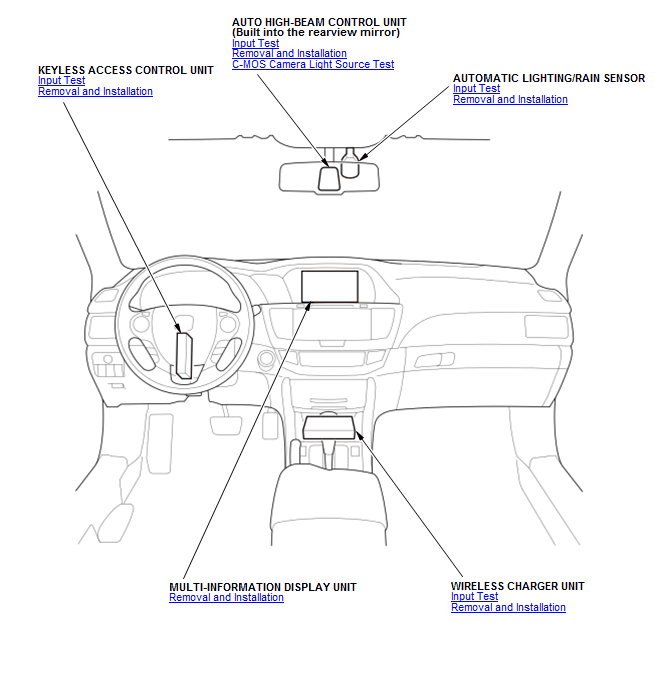

GHH260796Courtesy of HONDA, U.S.A., INC.

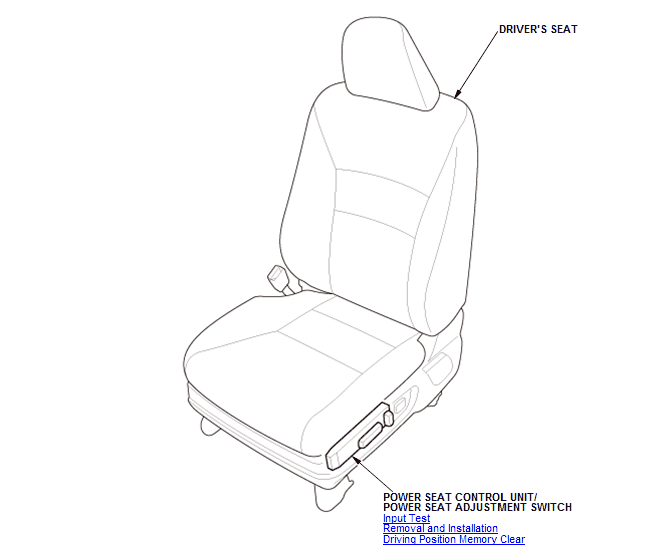

GHH260797Courtesy of HONDA, U.S.A., INC.

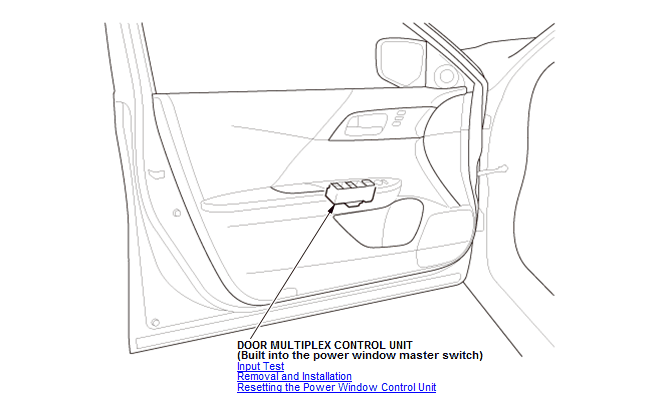

GHH260798Courtesy of HONDA, U.S.A., INC.

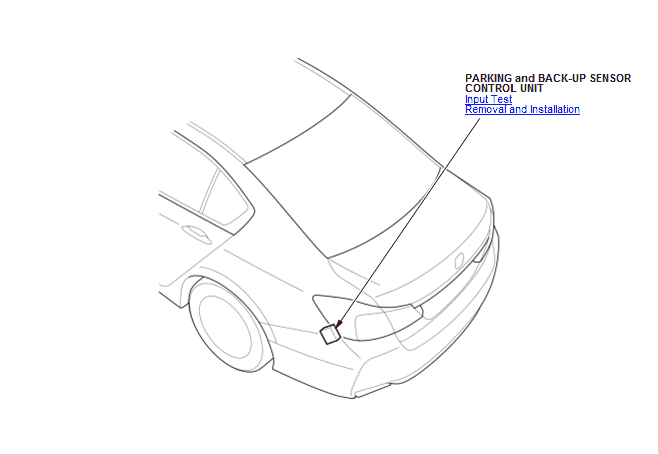

GHH260799Courtesy of HONDA, U.S.A., INC.
