M/T Model

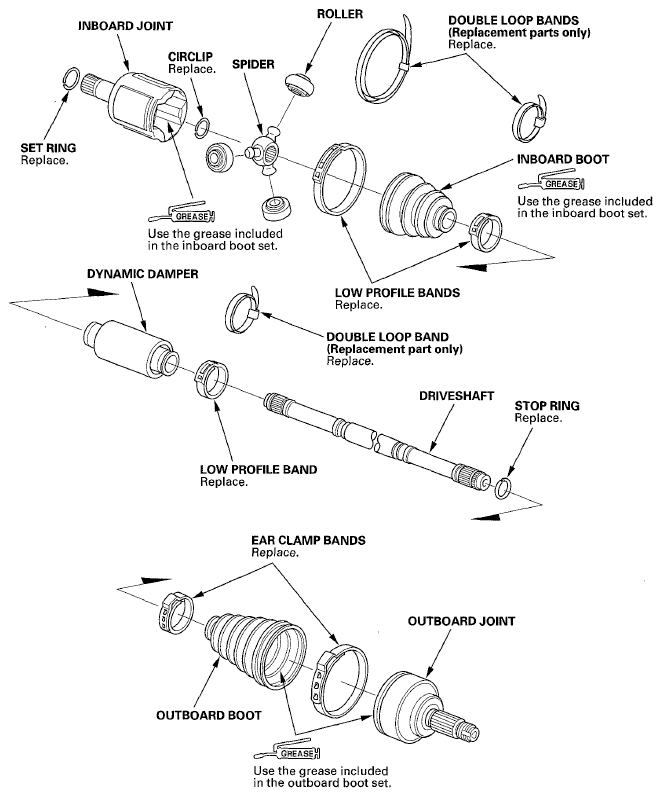

Fig 1: Identifying Driveshaft Replacement Components (M/T Model)

G05958848

Courtesy of AMERICAN HONDA MOTOR CO., INC.
