Intelligent Power Unit (IPU)

The IPU consists of the power control unit (PCU), the battery module, and the junction board. The IPU is located under the cargo area compartment to lower the center of gravity of the vehicle and to increase space in the vehicle interior.

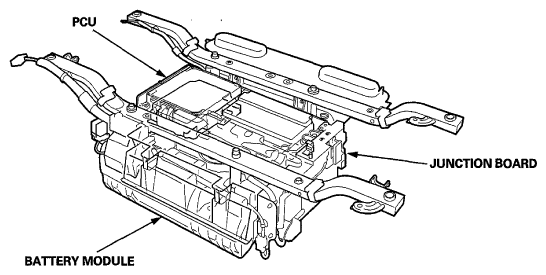

Fig 1: Identifying Battery Module, PCU And Junction Board

Courtesy of AMERICAN HONDA MOTOR CO., INC.
