Component Location Index

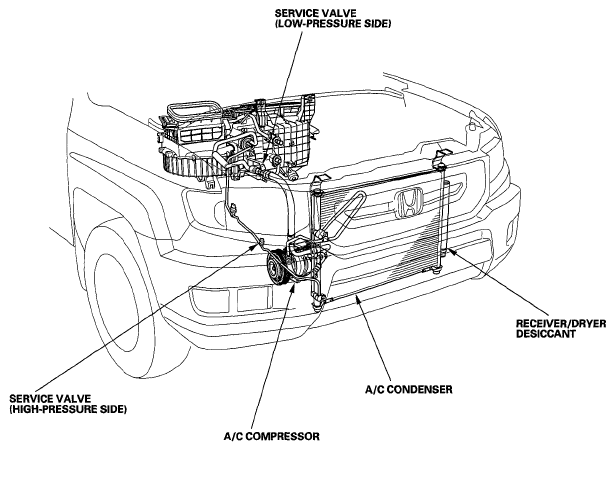

Fig 1: Identifying Heating And Air Conditioning Component Location (1 Of 3)
G05968347Courtesy of AMERICAN HONDA MOTOR CO., INC.

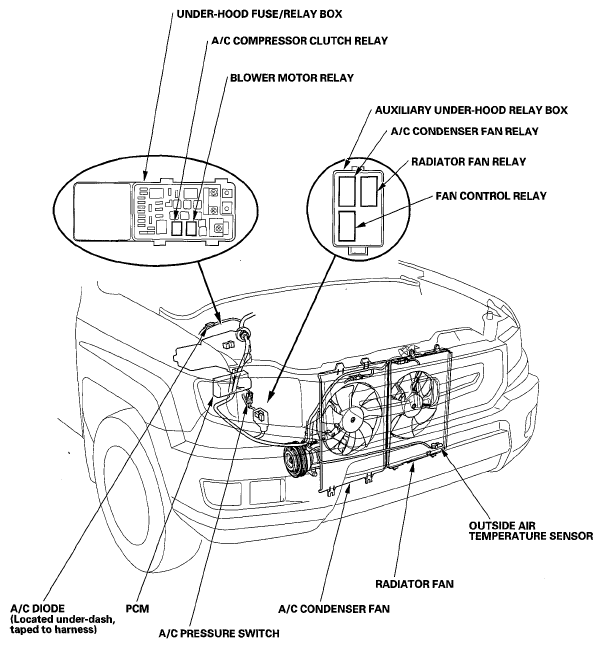

Fig 2: Identifying Heating And Air Conditioning Component Location (2 Of 3)
G05968348Courtesy of AMERICAN HONDA MOTOR CO., INC.

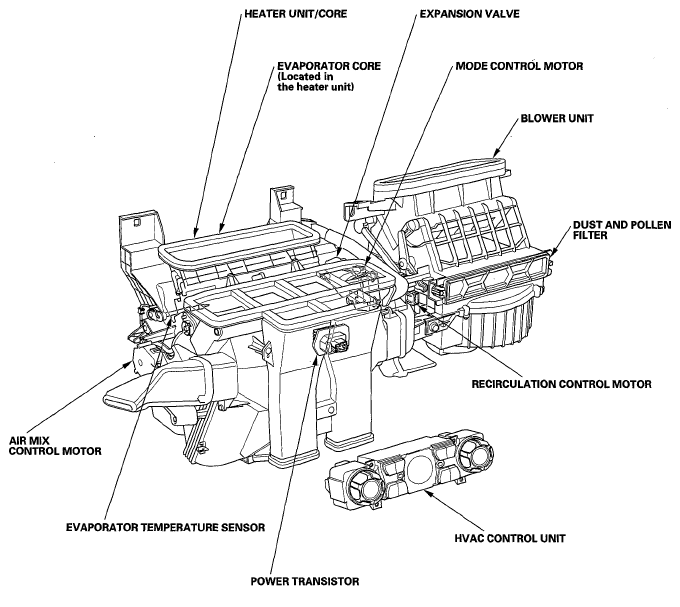

Fig 3: Identifying Heating And Air Conditioning Component Location (3 Of 3)
G05968349Courtesy of AMERICAN HONDA MOTOR CO., INC.
