A/C Line Replacement

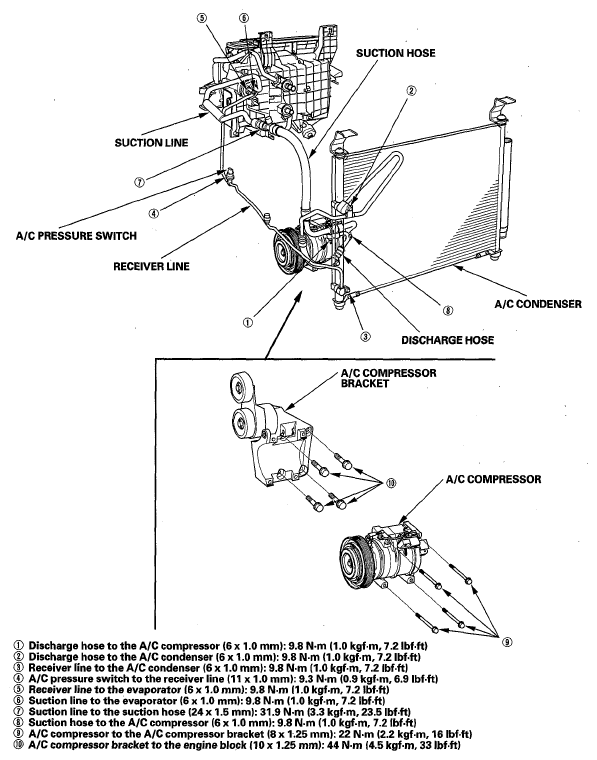

Fig 1: Identifying A/C Compressor Components

G05968351

Courtesy of AMERICAN HONDA MOTOR CO., INC.
