Crankshaft Position (CKP) Sensor

The CKP sensor detects crankshaft speed and is used by the PCM to determine ignition timing, timing for the fuel injection of each cylinder and engine misfire detection.

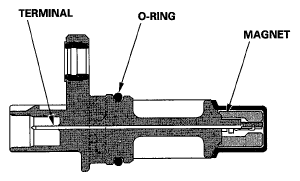

Fig 1: Sectional View Of Crankshaft Position (CKP) Sensor
G05964321Courtesy of AMERICAN HONDA MOTOR CO., INC.
