System Indicator (09'-11 Models): Notes

This system has four indicators:

ABS indicator (A)
Brake system indicator (B)
VSA indicator (C)
VSA activation indicator (D)

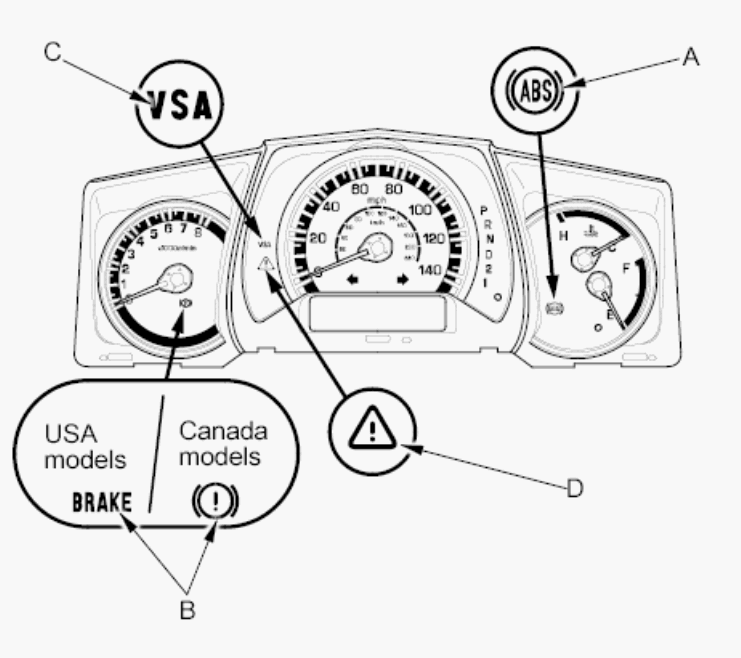

Fig 1: Identifying System Indicators (09'-11 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the system detects a problem, it turns the appropriate indicators on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.

When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), then goes off.
