Front Passenger's Door Lock Switch

  1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
    Fig 1: Identifying Front Passenger's Door Panel Connector Terminals
    G05968674Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between the terminals in each switch position according to the table.

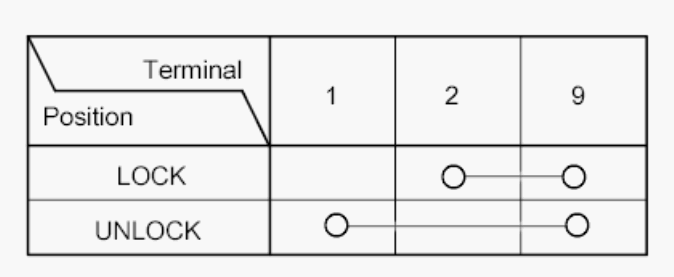

    Fig 2: Identifying Power Door Lock Switch Test
    G00509965Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the continuity is not as specified, replace the door lock switch.
