Cruise Control Combination Switch Removal, Installation, and Test: Test

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Cruise Control Combination Switch - Test

Courtesy of HONDA, U.S.A., INC.

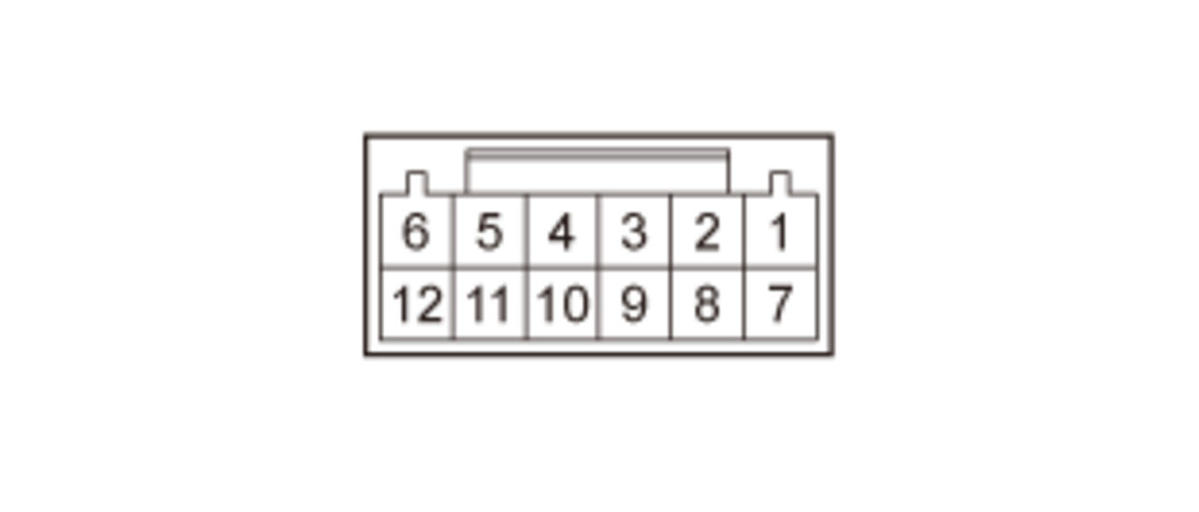

1. Measure the resistance between the cruise control combination switch 12P connector (male terminals) terminals No. 3 and No. 10 according to the table in illustration.

If there is no resistance in one or more positions, replace the cruise control combination switch.

Position	Resistance at normal ambient temperature
OFF (Released)	2.0-2.4 kΩ
CRUISE/MAIN (Pressed and held)	54.3-66.3 Ω
CANCEL (Pressed and held)	165.0-201.6 Ω
SET-(Pressed and held)	401.8-491.0 Ω
RES+(Pressed and held)	802.7-981.1 Ω

Courtesy of HONDA, U.S.A., INC.

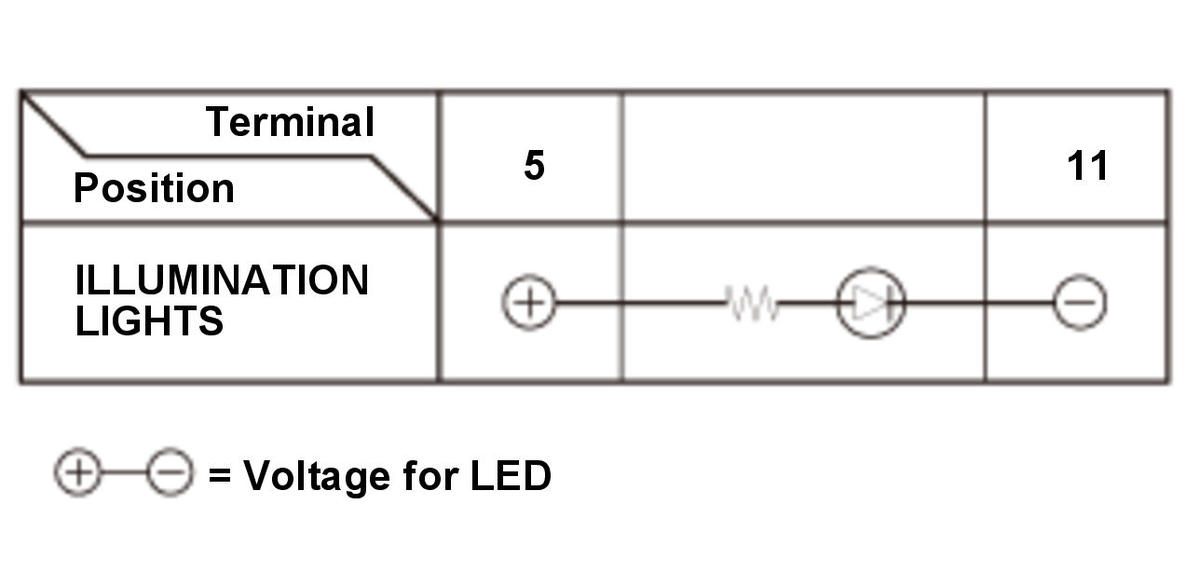

2. Check the LED for illumination by applying power and ground to the terminals according to the table in illustration.

NOTE: Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse). If the results are not as specified, replace the cruise control combination switch.
