How to Start LaneWatch Camera Aiming: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use this procedure before setting the LaneWatch camera aiming marker .

LaneWatch Camera Aiming - Start
1. Do the LaneWatch camera aiming marker preparation

2. Turn the vehicle to the ON mode.

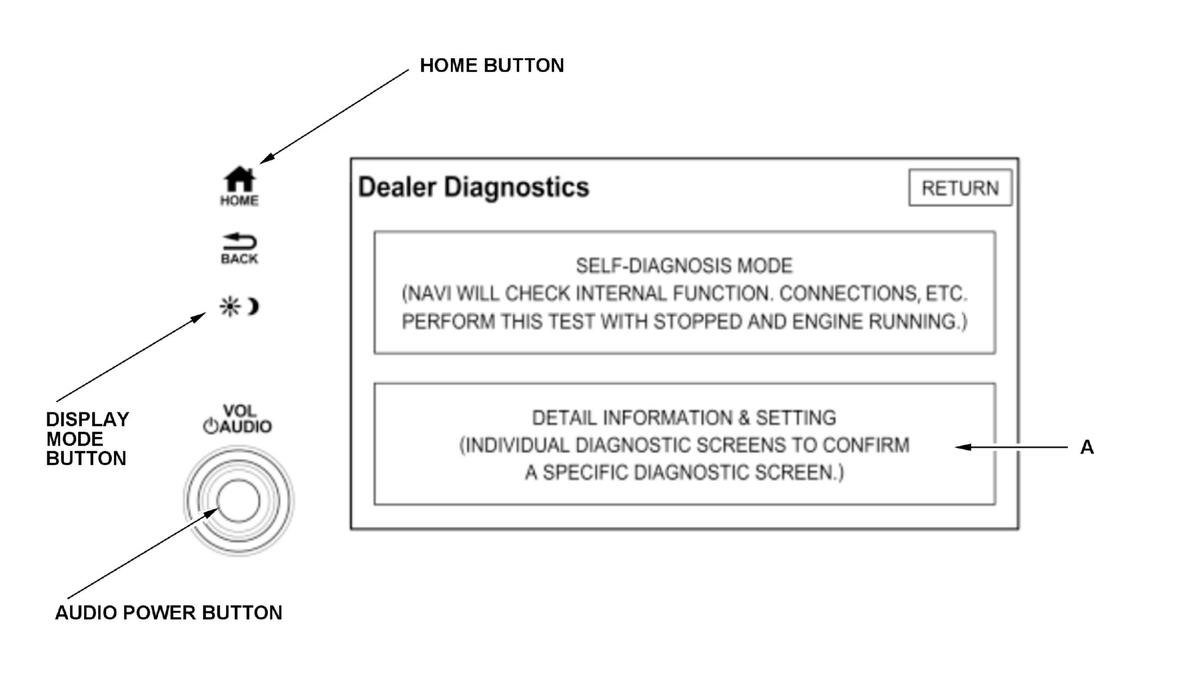

3. Press and hold the HOME button, DISPLAY MODE ( ) button, and the AUDIO POWER ( ) button until the Dealer Diagnostics menu screen is displayed.

4. When the Dealer Diagnostics menu appears, select the DETAIL INFORMATION and SETTING (A).

Displaying Dealer Diagnostics Menu Screen

Courtesy of HONDA, U.S.A., INC.

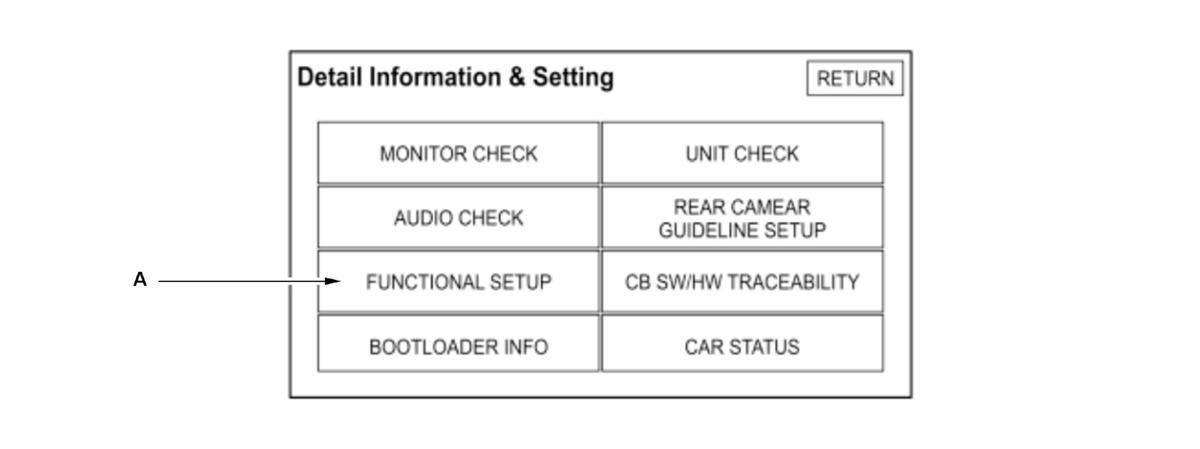

5. Select the FUNCTIONAL SETUP icon (A).

Courtesy of HONDA, U.S.A., INC.

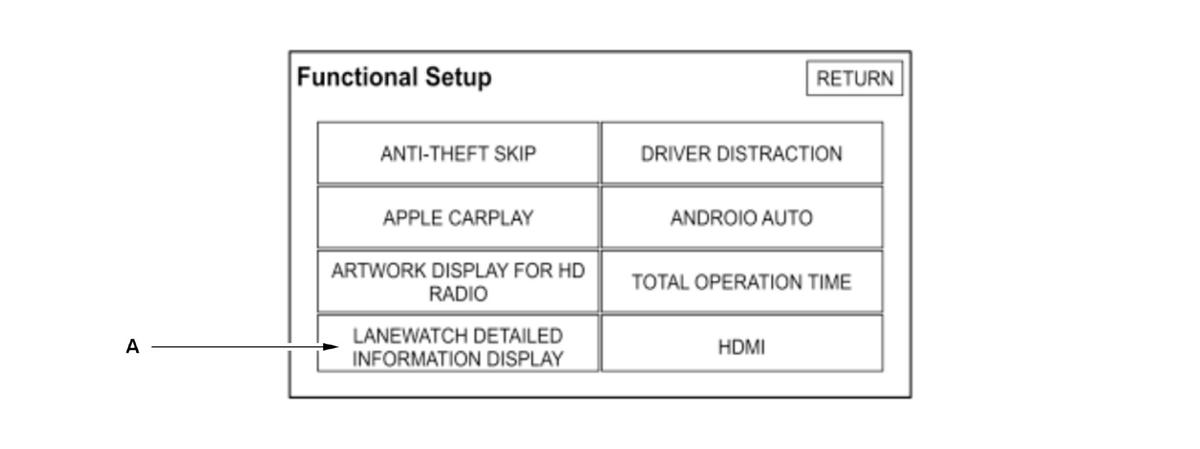

6. Select the LANEWATCH DETAILED INFORMATION DISPLAY icon (A).

Courtesy of HONDA, U.S.A., INC.

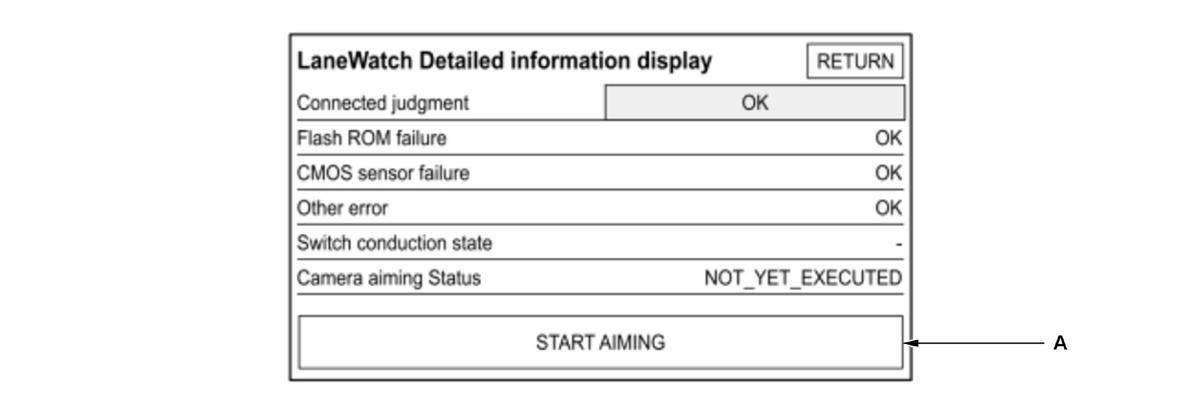

7. Select the START AIMING icon (A).

Courtesy of HONDA, U.S.A., INC.
