Rear Fuse Box Connector End View (View 403)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Left Rear Side Trim Panel
Connector A
- GRN
- On Rear Wire Harness

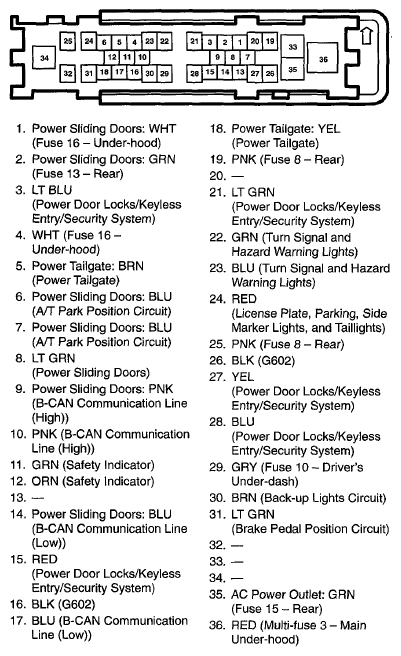

Fig 1: Rear Fuse Box Connector Terminals - Connector A (View 403)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- WHT
- On Left Side Wire Harness (Left Rear Branch)

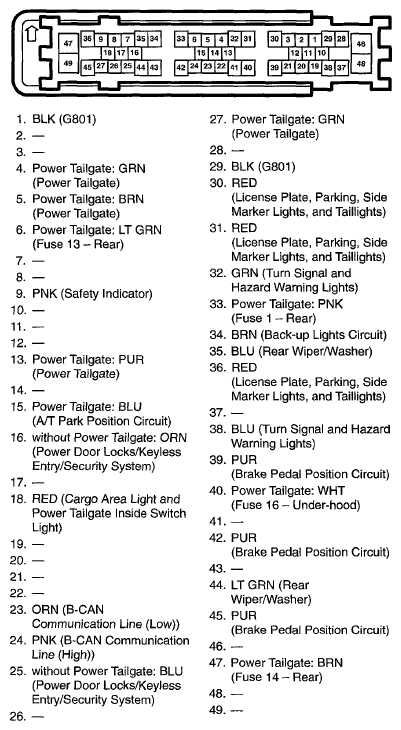

Fig 2: Rear Fuse Box Connector Terminals - Connector B (View 403)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D
- N/A
- On Trailer Lighting Control Unit Harness (Honda Accessory)
Fig 3: Rear Fuse Box Connector Terminals - Connector D (View 403)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
