ODS Unit Connector End View (View 394)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Left Side of Front Passenger's Seat Back
Connector A
- BLK
- To Side Element of Sensor
Fig 1: ODS Unit Connector Terminals - Connector A (View 394)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- BLK
- To Lower Element of Sensor
Fig 2: ODS Unit Connector Terminals - Connector B (View 394)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- BLK
- To Upper Element of Sensor
Fig 3: ODS Unit Connector Terminals - Connector C (View 394)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D
- BLK
- On Front Passenger's Seat Wire Harness

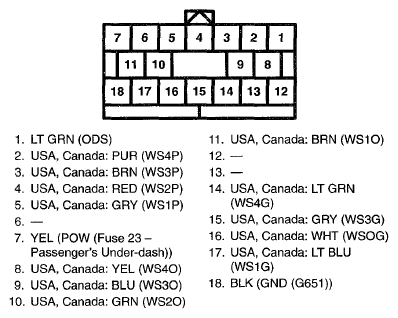

Fig 4: ODS Unit Connector Terminals - Connector D (View 394)
