Left BSI Radar Unit Connector End View (BSI System) (View 259)
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
BLK
Behind Left Side of Rear Bumper
On Rear Wire Harness

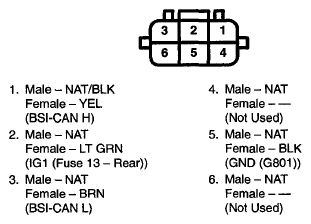

Fig 1: Left BSI Radar Unit (BSI System) Connector Terminals (View 259)
