HVAC Control Unit Connector End View (Manual A/C) (View 355)
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
TAN
Behind HVAC Control Unit
On Dashboard Wire Harness (View of Middle to Passenger's Side)

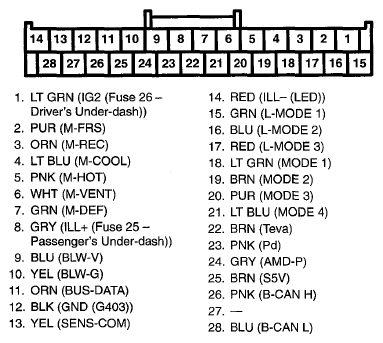

Fig 1: HVAC Control Unit (Manual A/C) Connector Terminals (View 355)
