Cable Reel Connector End View (View 384)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Connector A

WHT
In Steering Column Cover
On Dashboard Wire Harness (View of Left Side)

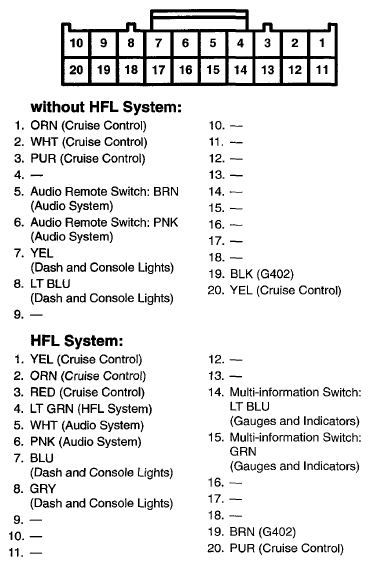

Fig 1: Cable Reel Connector Terminals - Connector A (View 384)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

YEL
In Steering Column Cover
On Dashboard Wire Harness (View of Left Side)

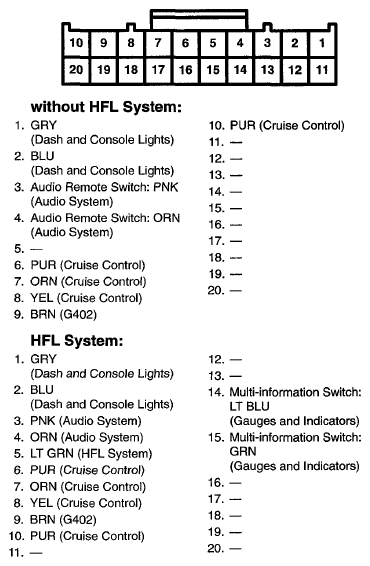

Fig 2: Cable Reel Connector Terminals - Connector B (View 384)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

WHT
In Steering Wheel
On Cable Reel Sub-harness

Fig 3: Cable Reel Connector Terminals - Connector C (View 384)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
