Removal and Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Torque: N.m (kgf.m, lbf.ft) |
- 12 Volt Battery (Negative) Terminal - Disconnect
- Kick Panel (Passenger's Side) - Remove

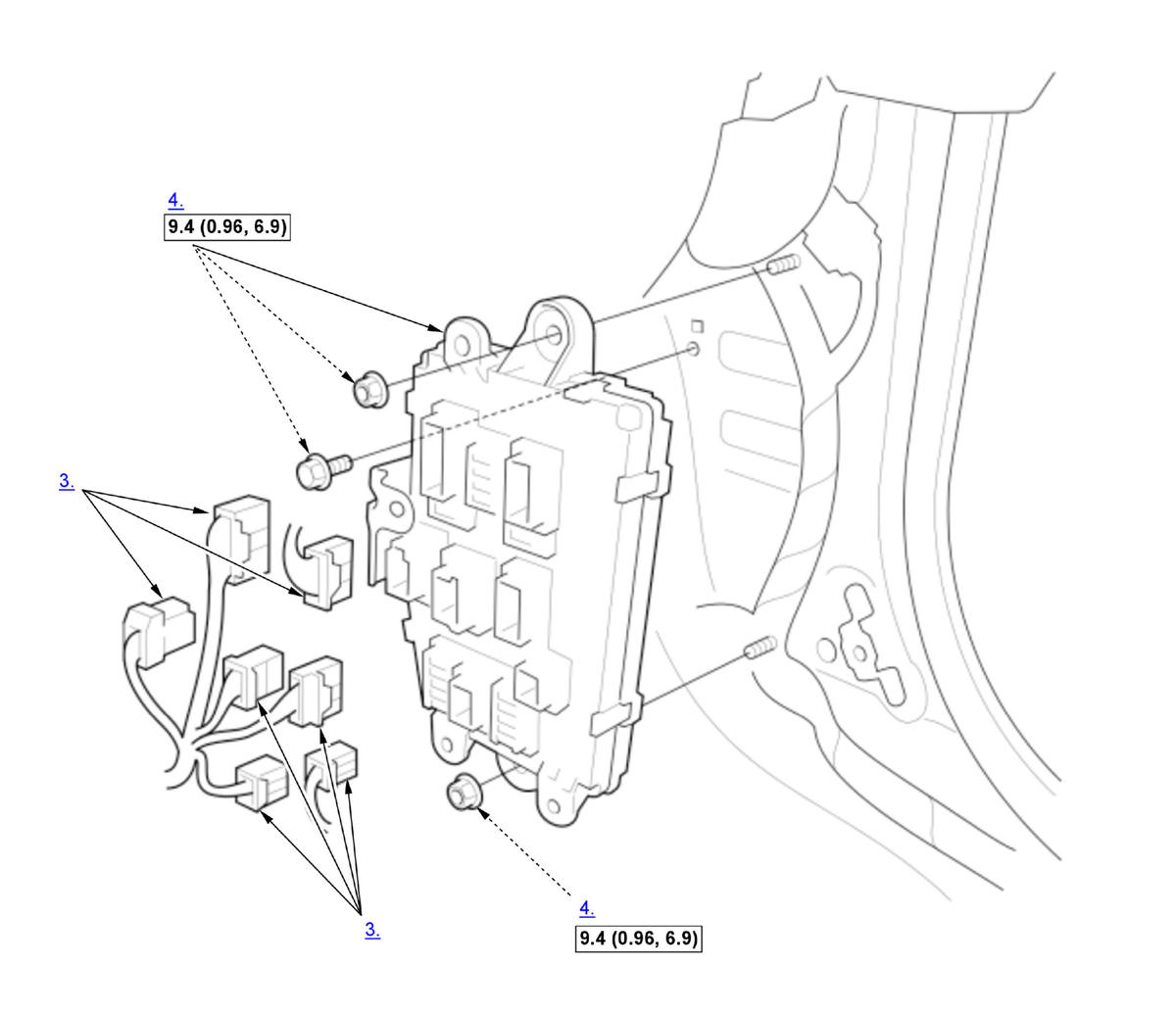

- Connectors - Disconnect
- Power Distribution Module - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal.
