Exploded View

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:  If the packings are damaged or torn, replace it with a new one.

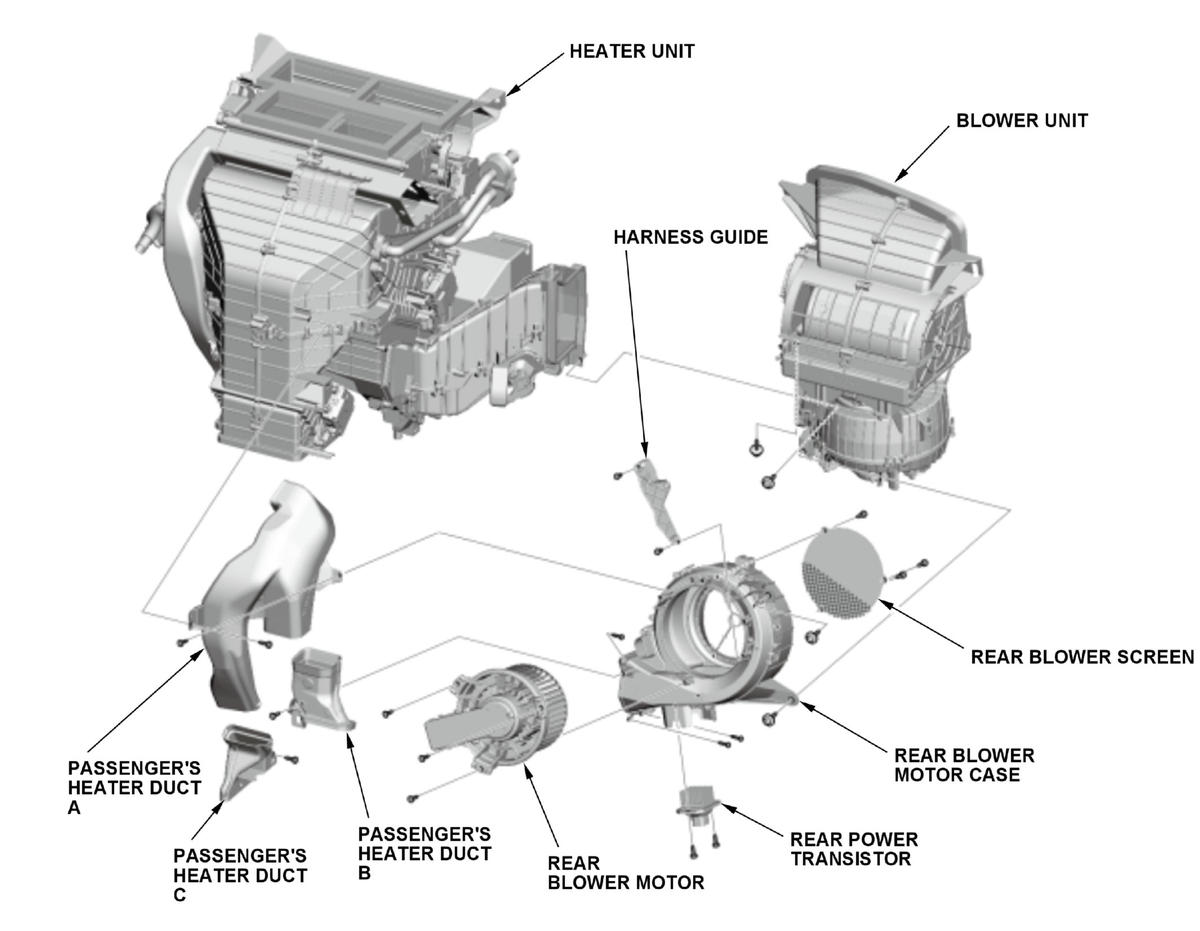

GHH445652Courtesy of HONDA, U.S.A., INC.

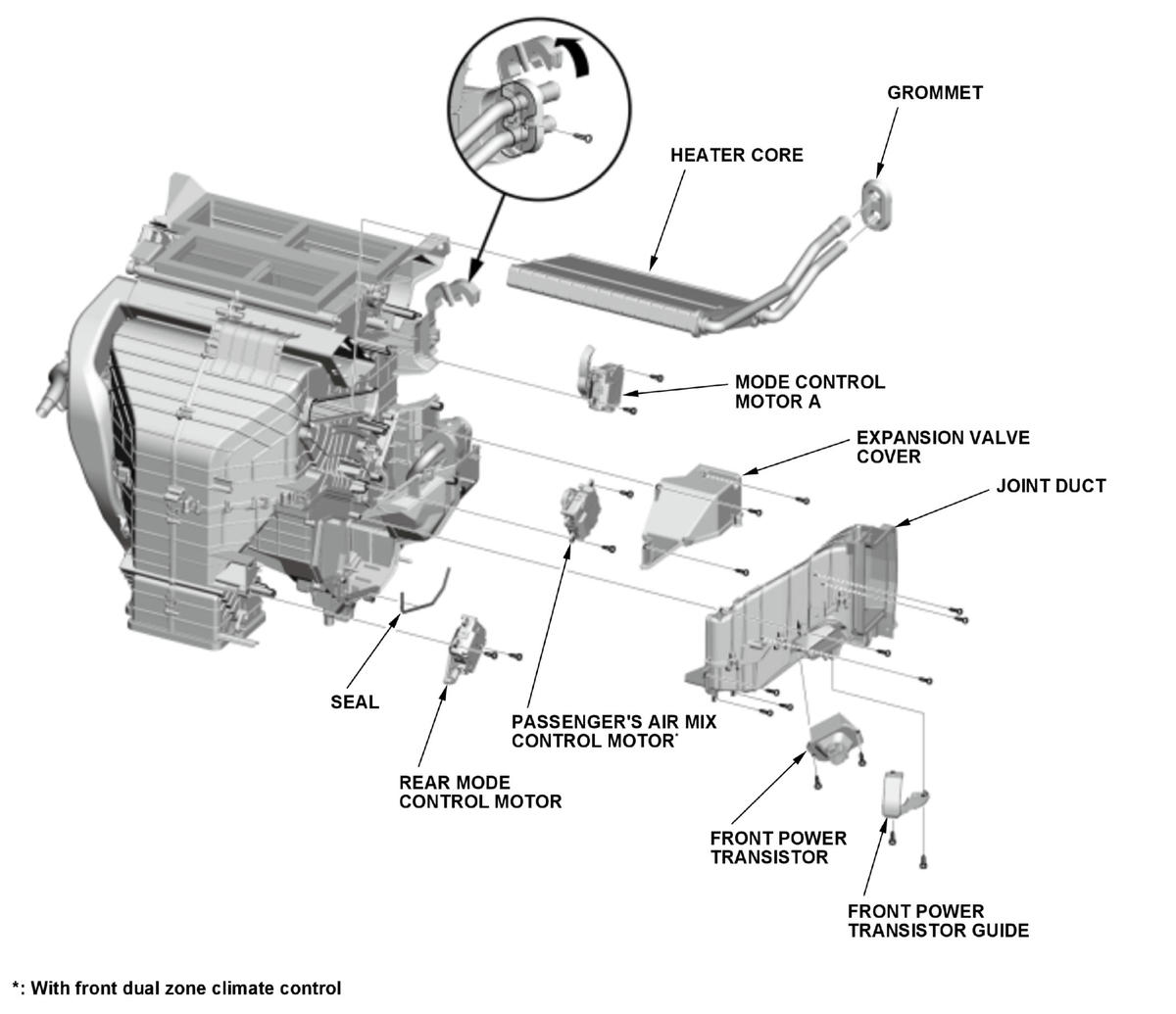

GHH445653Courtesy of HONDA, U.S.A., INC.

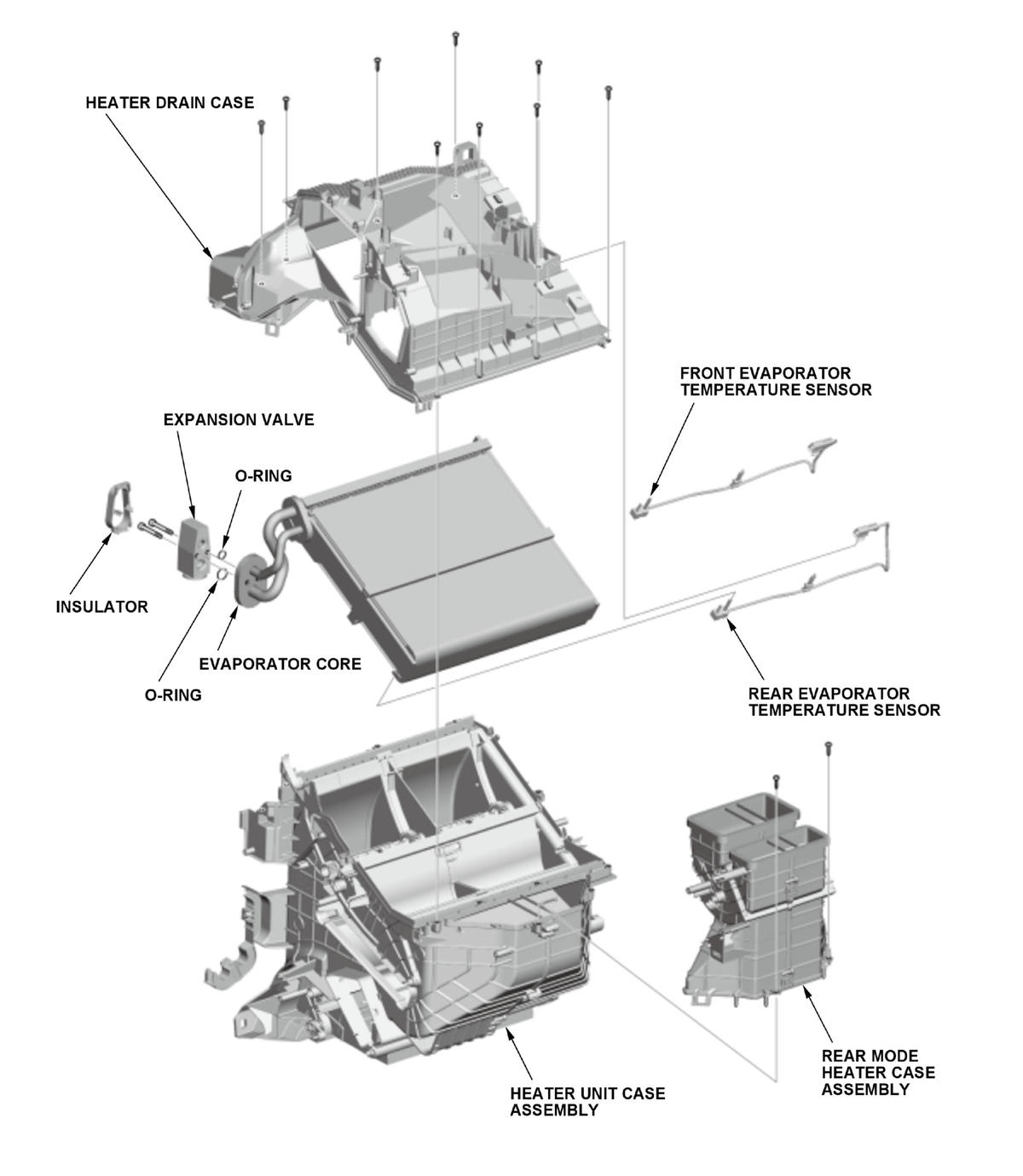

GHH445655Courtesy of HONDA, U.S.A., INC.

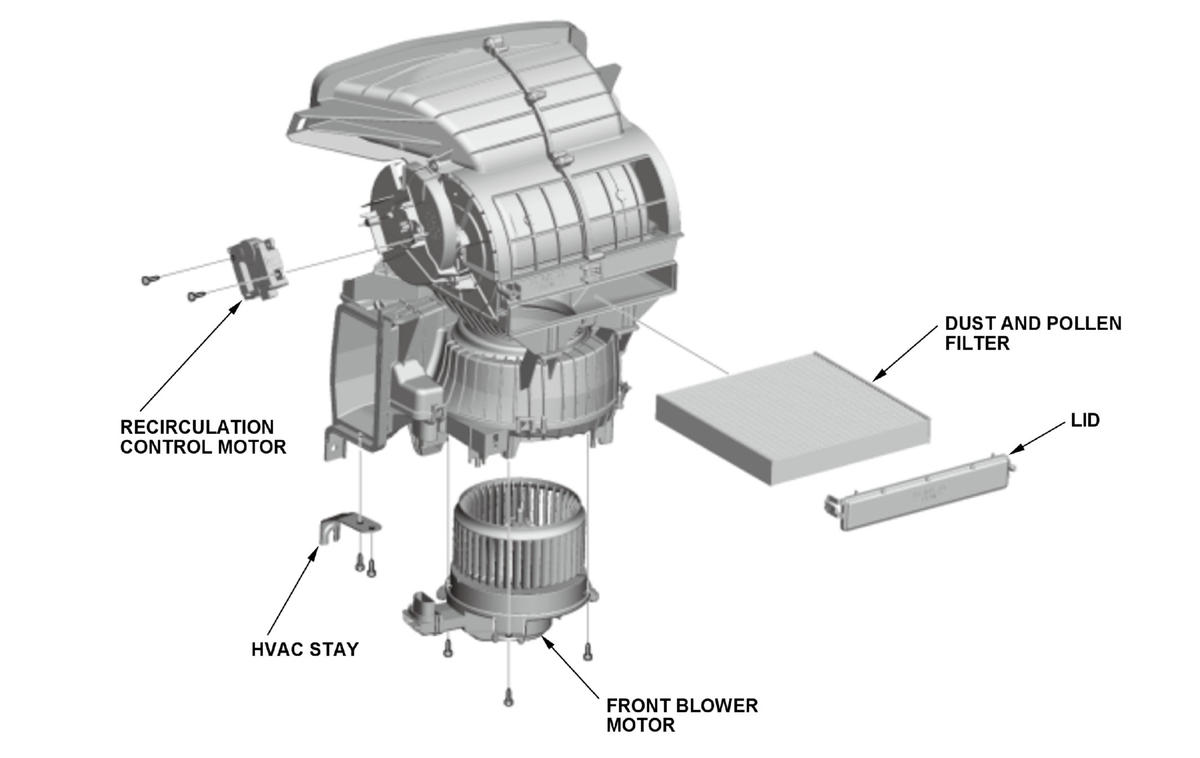

GHH445656Courtesy of HONDA, U.S.A., INC.
