Telematics Control Unit Connector for Inputs and Outputs (2025)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
| Telematics Control Unit Connector A (32P) |
| Telematics Control Unit Connector B (5P) |

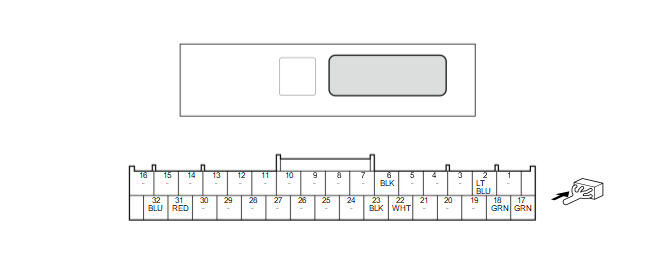

Telematics Control Unit Connector A (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
Not used |
--- |
| A2 |
ACC(DC/DC) |
Power source for accessories |
| A3 |
Not used |
--- |
| A4 |
Not used |
--- |
| A5 |
Not used |
--- |
| A6 |
GND |
Ground for telematics control unit (G406) |
| A7 |
Not used |
--- |
| A8 |
Not used |
--- |
| A9 |
Not used |
--- |
| A10 |
Not used |
--- |
| A11 |
Not used |
--- |
| A12 |
Not used |
--- |
| A13 |
Not used |
--- |
| A14 |
Not used |
--- |
| A15 |
Not used |
--- |
| A16 |
Not used |
--- |
| A17 |
+B BACKUP2 MAIN |
Continuous power source |
| A18 |
IG1 METER(DC/DC) |
IG1 power source |
| A19 |
Not used |
--- |
| A20 |
Not used |
--- |
| A21 |
Not used |
--- |
| A22 |
YB-CAN B_L |
Communication signal |
| A23 |
YB-CAN B_H |
Communication signal |
| A24 |
Not used |
--- |
| A25 |
Not used |
--- |
| A26 |
Not used |
--- |
| A27 |
Not used |
--- |
| Cavity |
Terminal Name |
Description |
| A28 |
Not used |
--- |
| A29 |
Not used |
--- |
| A30 |
Not used |
--- |
| A31 |
YF-CAN_L |
Communication signal |
| A32 |
YF-CAN_H |
Communication signal |
Telematics Control Unit Connector B (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
TEL USB GND |
Ground for USB |
| B2 |
TEL USB VBUS |
Inputs power source for USB |
| B3 |
TEL USB DATA+ |
Communication signal |
| B4 |
TEL USB DATA- |
Communication signal |
| B5 |
TEL USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
