Rear Entertainment System (RES) Screen Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| RES Screen Connector A (7P) |
| RES Screen Connector B (3P) |

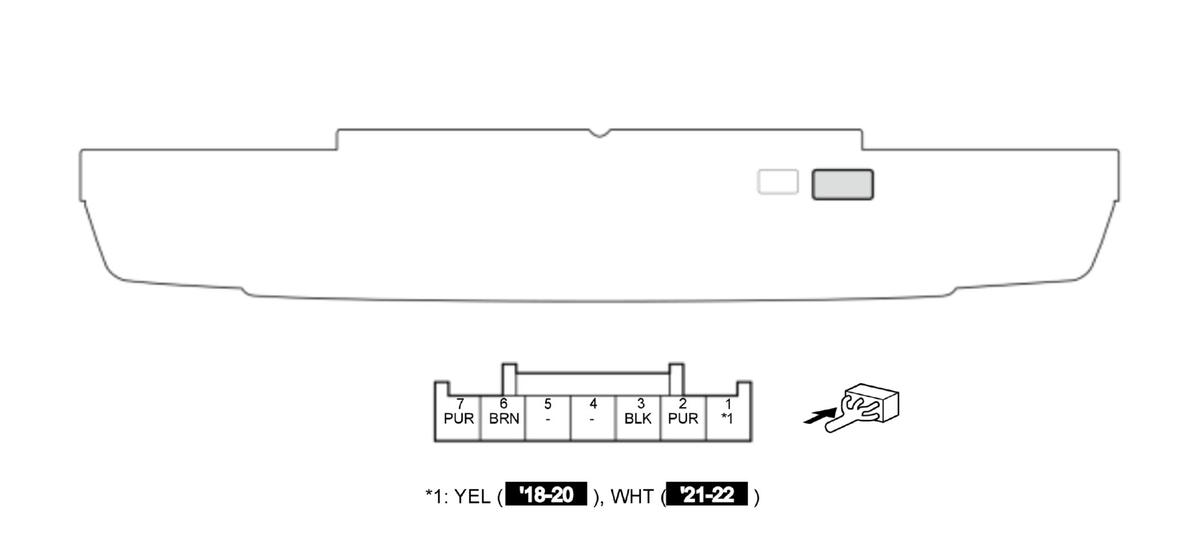

RES Screen Connector A (7P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | +B BACK UP | Continuous power source |
| A2 | DISP CONT RES | Inputs signal for RES screen switching on/off |
| A3 | GND | Ground for RES screen (G605) |
| A4 | Not used | --- |
| A5 | Not used | --- |
| A6 | SCTY RADIO SW | Security signal |
| A7 | SCTY 6 | Security signal |

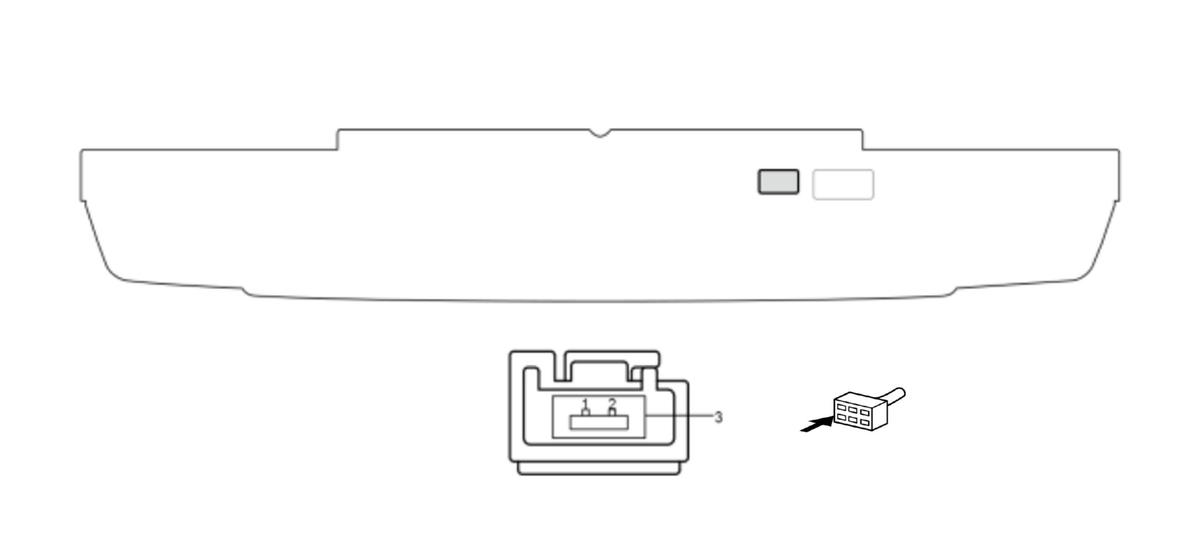

RES Screen Connector B (3P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | LVDS+ | Communication signal for RES control unit |
| B2 | LVDS- | Communication signal for RES control unit |
| B3 | LVDS SH | Shield for terminals No. 1 and No. 2 |
