Dashboard 2

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HONDA, U.S.A., INC.

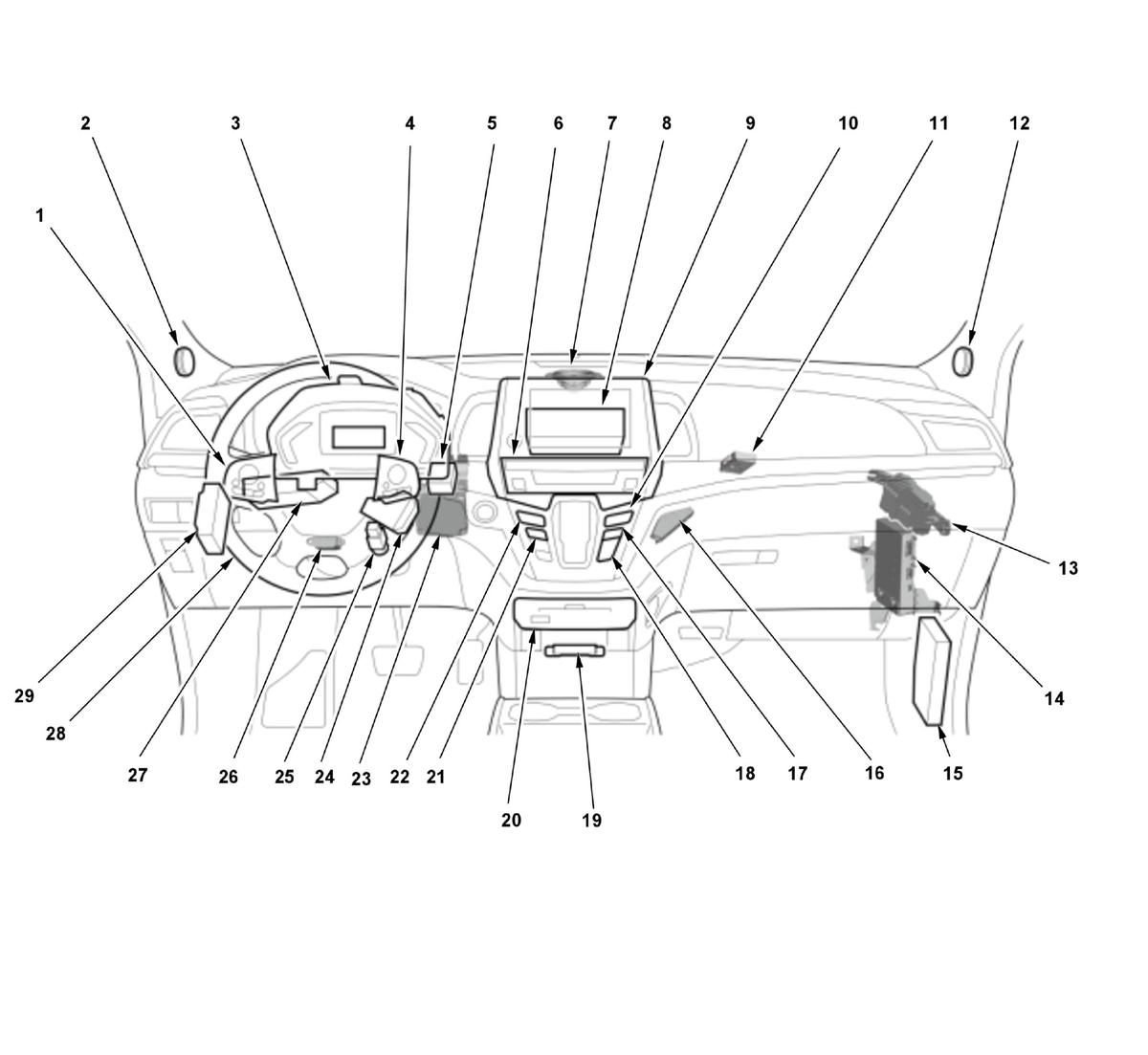

Dashboard 2 Legend

No.	Component	Related System
1	Audio Remote-HFT Switch	Audio and Visual System
2	Left Front Tweeter	Audio and Visual System
3	Gauge Control Module	12 Volt Battery 12 Volt Battery Management System Driving Position Memory System (DPMS) Exterior Lights Gauges Heated Steering Wheel Interior Lights Keyless Access System Keyless/Power Door Locks/Security System Parking and Back-Up Sensor System Power Sliding Doors Power Tailgate Reminder Systems Safety Indicator System Turn Signal/Hazard Warning Lights Wipers/Washers Audio and Visual System Rear Entertainment System SRS (Supplemental Restraint System) Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation Auto High-Beam (High-Beam Support System) Traffic Sign Recognition System Blind Spot Information (BSI) System Cross Traffic Monitor LaneWatch
4	Cruise Control Combination Switch/ACC Combination Switch - Heated Steering Wheel Switch - Cruise Switch - Distance Switch - LKAS Switch - Main Switch	Heated Steering Wheel Cruise Control Adaptive Cruise Control (ACC) Lane Keeping Assist System (LKAS)
5	CAN Gateway	Fuel and Emissions System Keyless Access System
6	Climate Control Unit	Climate Control Audio and Visual System Power Mirrors Rear Window Defogger
7	Front Center Speaker	Audio and Visual System
8	Infotainment Control Unit	Audio and Visual System Rear Entertainment System Telematics System Cross Traffic Monitor LaneWatch
9	Center Display Unit	Audio and Visual System Rear Entertainment System Telematics System Cross Traffic Monitor LaneWatch
10	Front Passenger's Ventilated Seat Switch/Front Passenger's Seat Heater Switch	Seat Heaters Ventilated Seats
11	ANC/Active Sound Control Unit	Audio and Visual System
12	Right Front Tweeter	Audio and Visual System
13	Engine Mount Control Unit	Active Control Engine Mount (ACM)
14	RES Control Unit	Audio and Visual System Rear Entertainment System
15	Power Distribution Module	Climate Control 12 Volt Battery Management System Entry Lights Control System Exterior Lights Horns Interior Lights Keyless/Power Door Locks/Security System Seat Heaters Ventilated Seats Auto High-Beam (High-Beam Support System)
16	Near Field Communication Unit	Audio and Visual System
17	Hazard Warning Switch	Turn Signal/Hazard Warning Lights
18	Front Passenger's Airbag Cutoff Indicator	SRS (Supplemental Restraint System)
19	Front Interior LF Antenna	Keyless Access System
20	BD Player Unit/CD Player Unit	Audio and Visual System Rear Entertainment System
21	Idle Stop Off Switch	Fuel and Emissions Systems
22	Driver's Ventilated Seat Switch/Driver's Seat Heater Switch	Seat Heaters Ventilated Seats
23	DC-DC Converter	Fuel and Emissions Systems
24	Electric Steering Lock	Keyless Access System
25	Brake Pedal Position Switch	Exterior Lights Keyless Access System Power Sliding Doors Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation
26	Heated Steering Wheel Control Unit	Heated Steering Wheel
27	Body Control Module	TPMS 12 Volt Battery Management System Driving Position Memory System (DPMS) Entry Lights Control System Exterior Lights Gauges Heated Windshield Wiper Area HondaVACTM Interior Lights Keyless Access System Keyless/Power Door Locks/Security System Power Sliding Doors Power Tailgate Power Windows Rear Window Defogger Reminder Systems Safety Indicator System Moonroof Turn Signal/Hazard Warning Lights Wipers/Washers Cruise Control Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation Auto High-Beam (High-Beam Support System) Blind Spot Information (BSI) System LaneWatch
28	Steering Wheel - Steering Heater/Temperature Sensor	Heated Steering Wheel
29	AC Inverter Unit	AC Power Outlet
