Driving Position Memory Switch Removal, Installation, and Test: Test
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Driving Position Memory Switch - Test

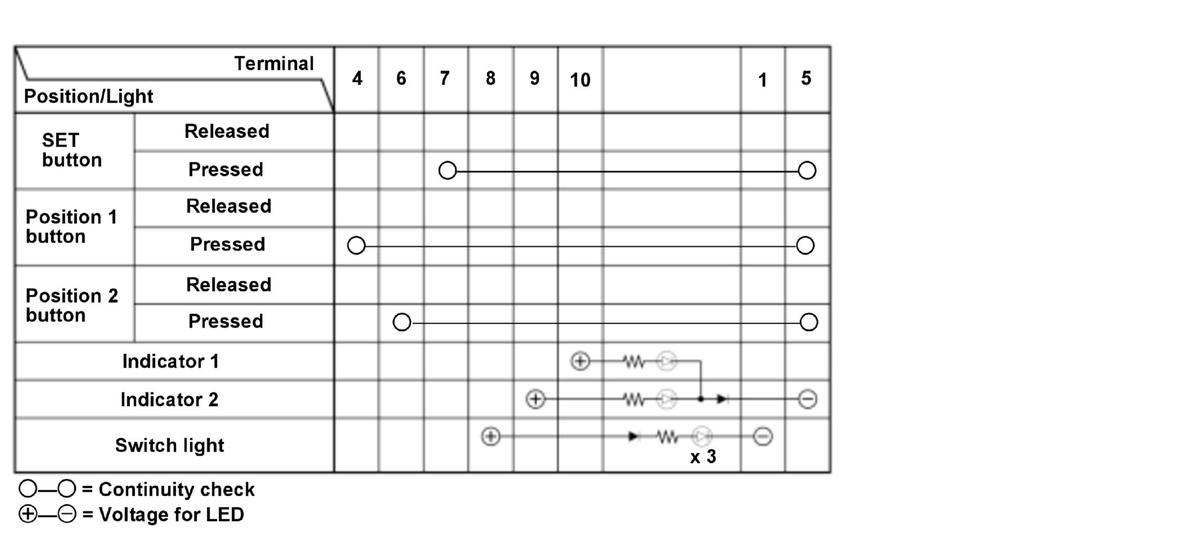

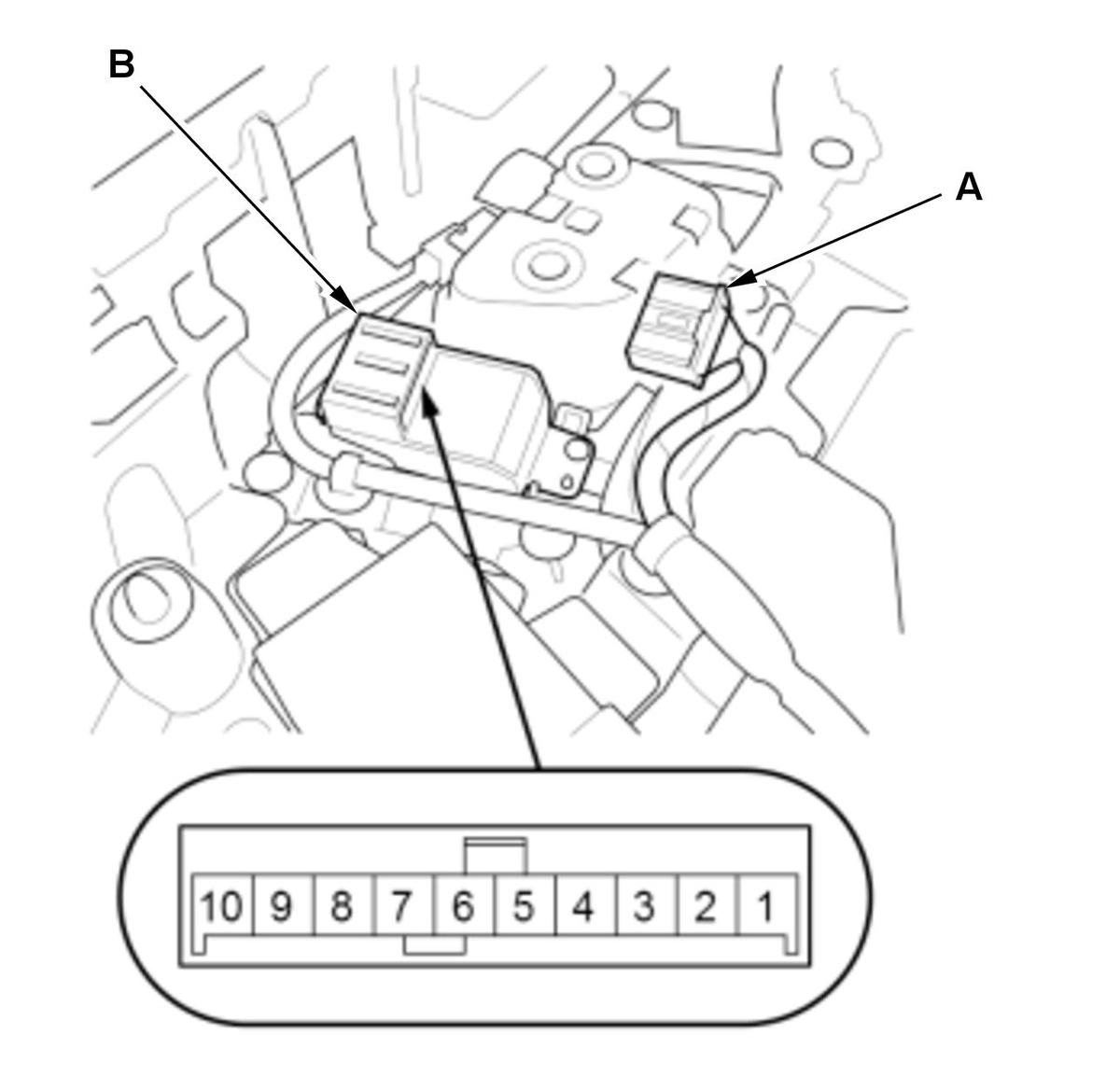

1. Disconnect the connector (A), then check the switch according to the table.
NOTE:- When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
2. If the result is not as specified, replace the driving position memory switch (B).
