Component Location Index

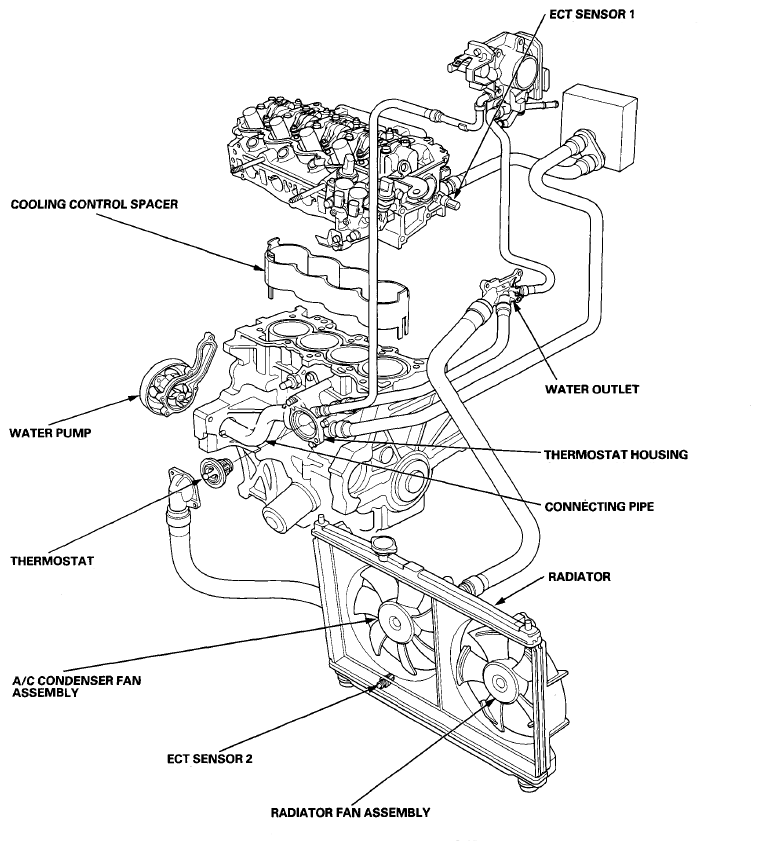

Fig 1: Identifying Cooling System Components Location

G08092070

Courtesy of AMERICAN HONDA MOTOR CO., INC.
