Safety Indicator System
>>
Circuit Diagram
Circuit Diagram

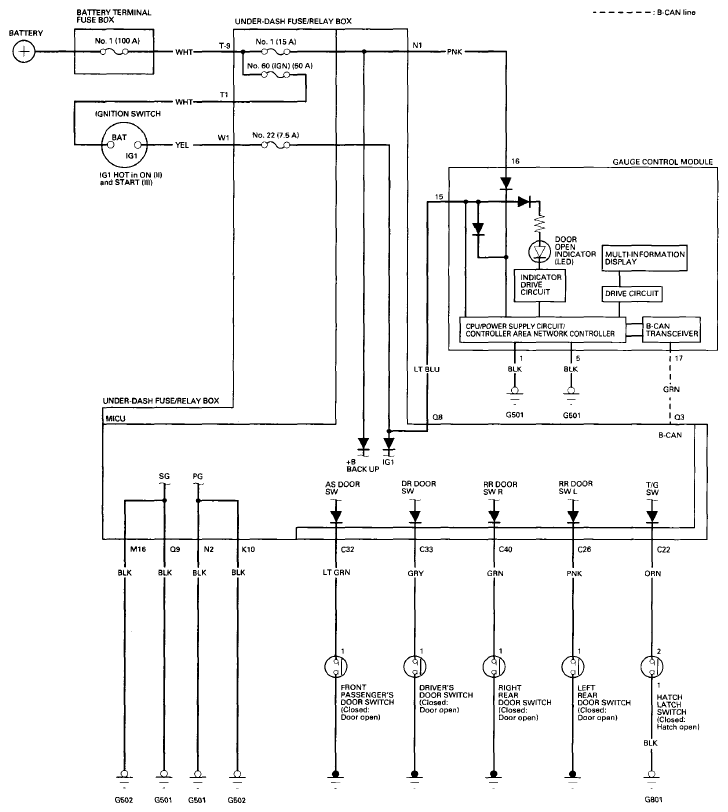

Fig 1: Safety Indicator System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
