Washer Tube Replacement

  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the washer nozzles and the clips, then remove the tubes.
    Fig 1: Identifying Washer Nozzles, Clips And Tubes (Front)
    G08094782Courtesy of AMERICAN HONDA MOTOR CO., INC.

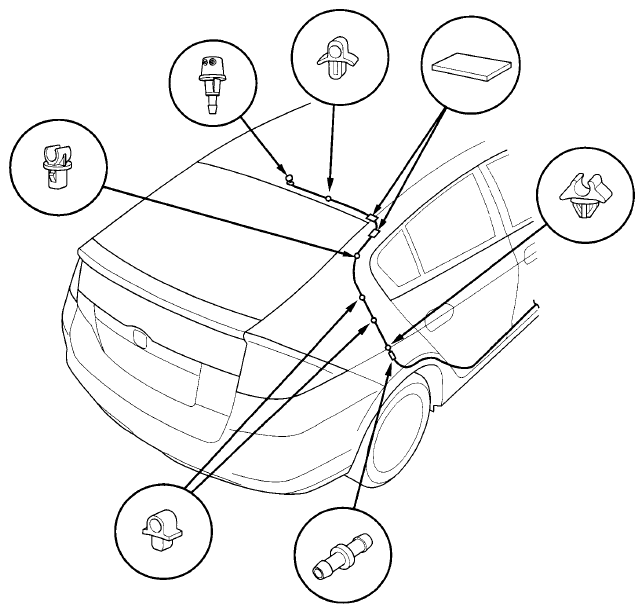

    Fig 2: Identifying Washer Nozzles, Clips And Tubes (Rear)
    G08094783Courtesy of AMERICAN HONDA MOTOR CO., INC.
