Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
A/T Interlock System
>>
Circuit Diagram
>>
Seven-position Transmission
Seven-position Transmission

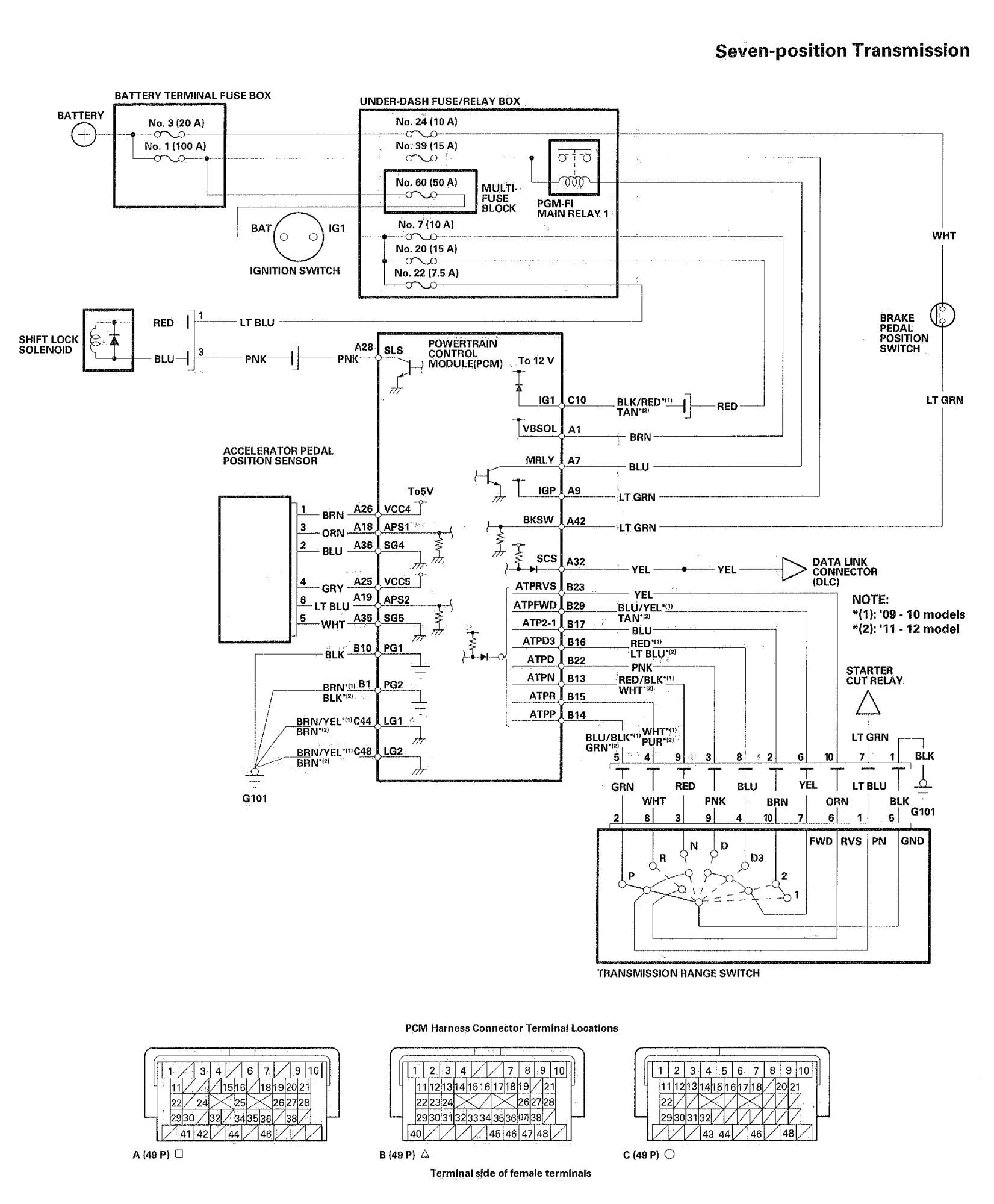

Fig 1: Seven-Position Transmission Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
