Low Oil Pressure Indicator Circuit Diagram

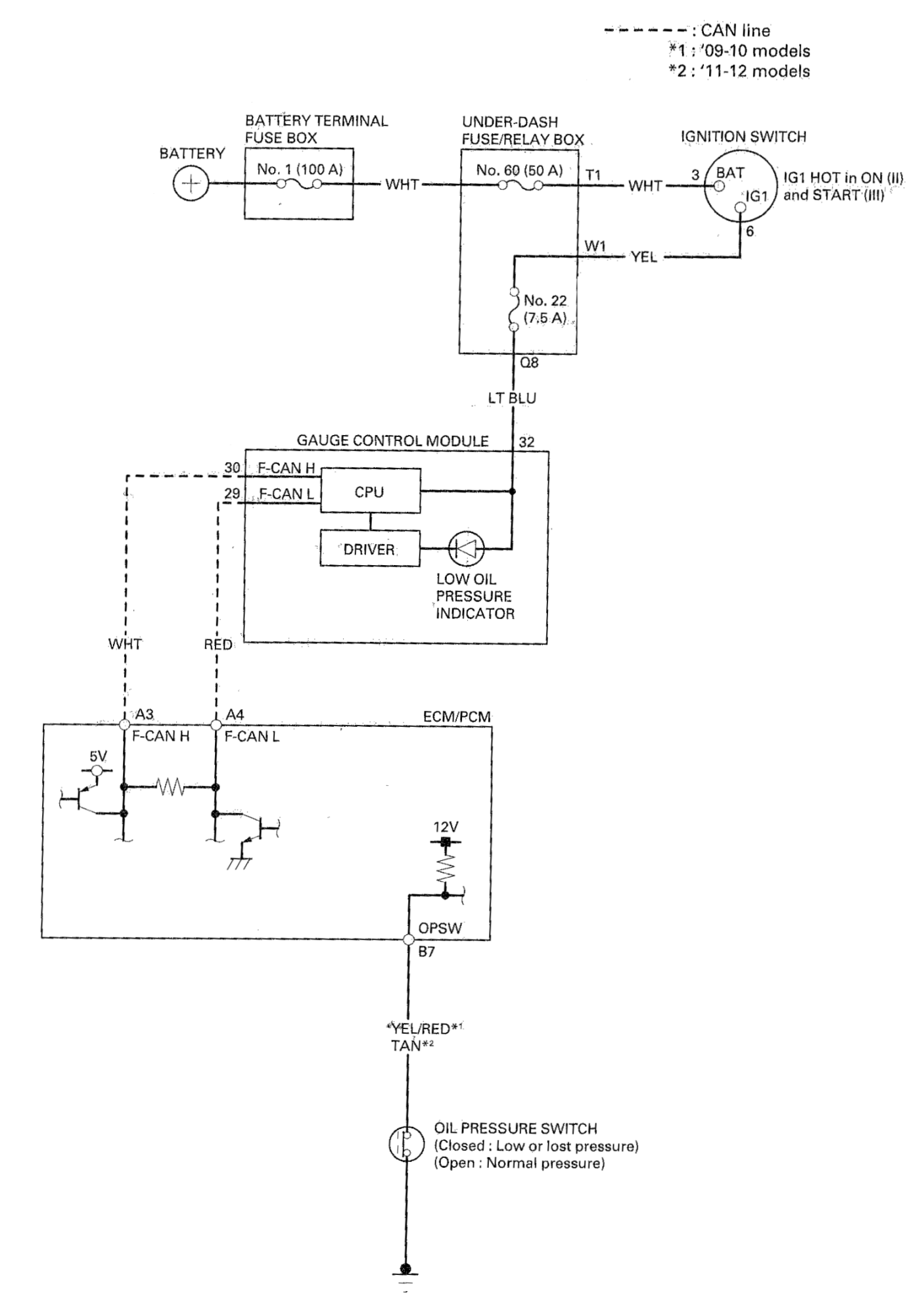

Fig 1: Identifying Low Oil Pressure Indicator Circuit Diagram

G00492858

Courtesy of AMERICAN HONDA MOTOR CO., INC.
