2012
>>
Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Fan Controls
>>
Circuit Diagram
Circuit Diagram

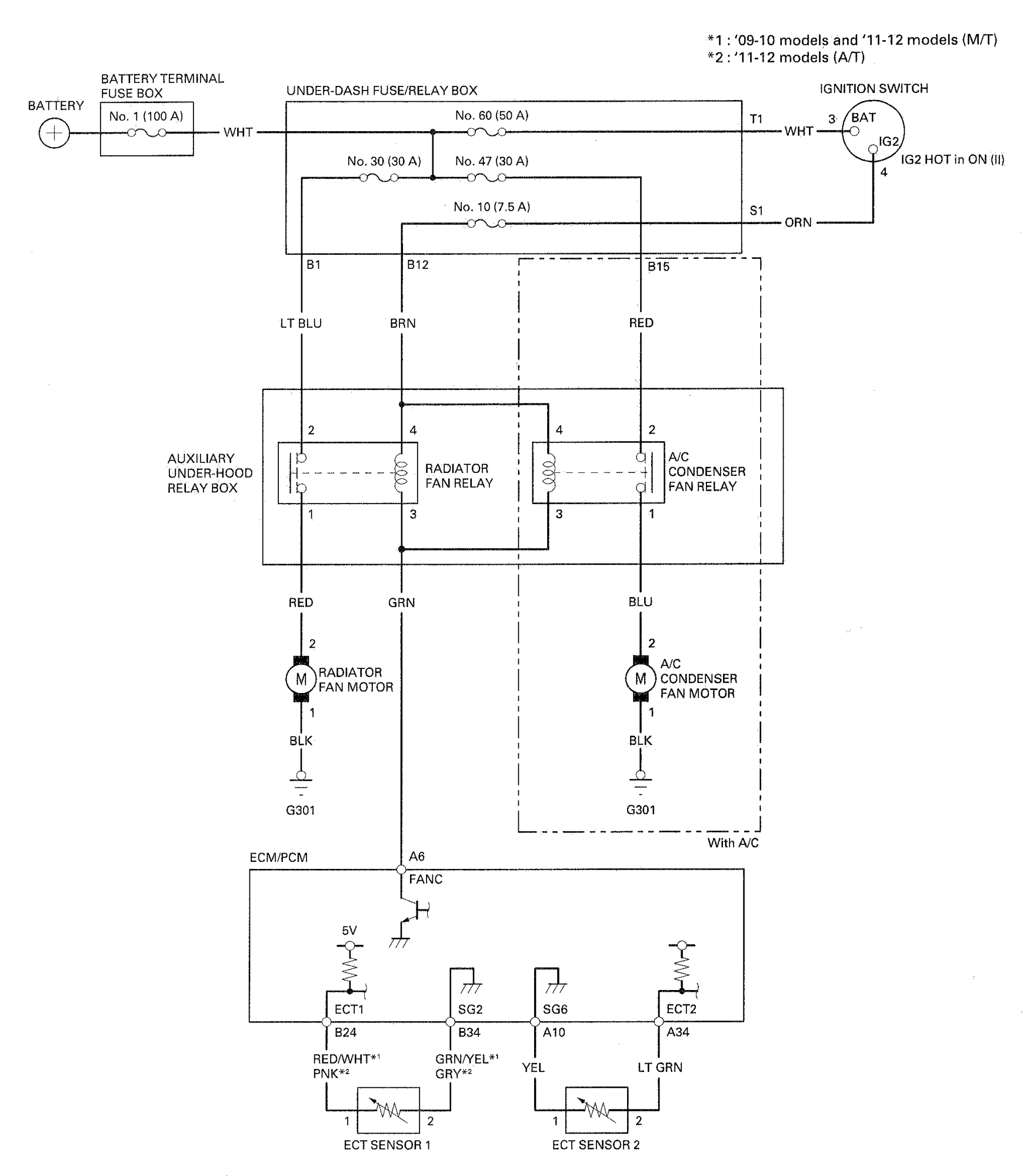

Fig 1: Identifying Fan Controls - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
