Warm Up TWC Removal/Installation

  1. Raise the vehicle on a lift.
  2. Remove the bolts (A).

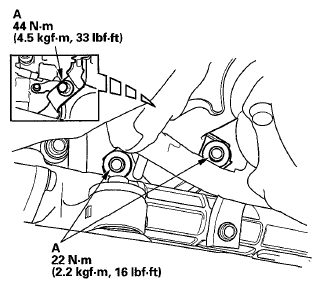

    Fig 1: Identifying Bolts
    G05953206Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Lower the vehicle.
  4. Remove the A/F sensor (Sensor 1) (see A/F SENSOR REPLACEMENT ).
  5. Remove the EGR pipe (see EGR VALVE REPLACEMENT ).
  6. Remove the cover (A).

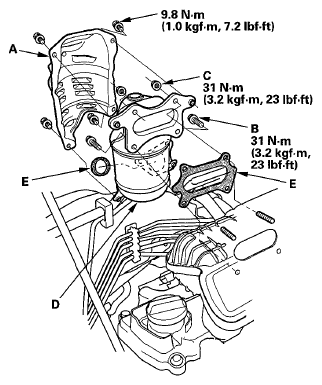

    Fig 2: Cover, Bolts, Nuts, Gasket & WU-TWC With Torque Specifications
    G05953207Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts (B) and the nuts (C).
  8. Remove the WU-TWC (D).
  9. Install the parts in the reverse order of removal with a new gaskets (E).
