Circuit Diagram - With Security

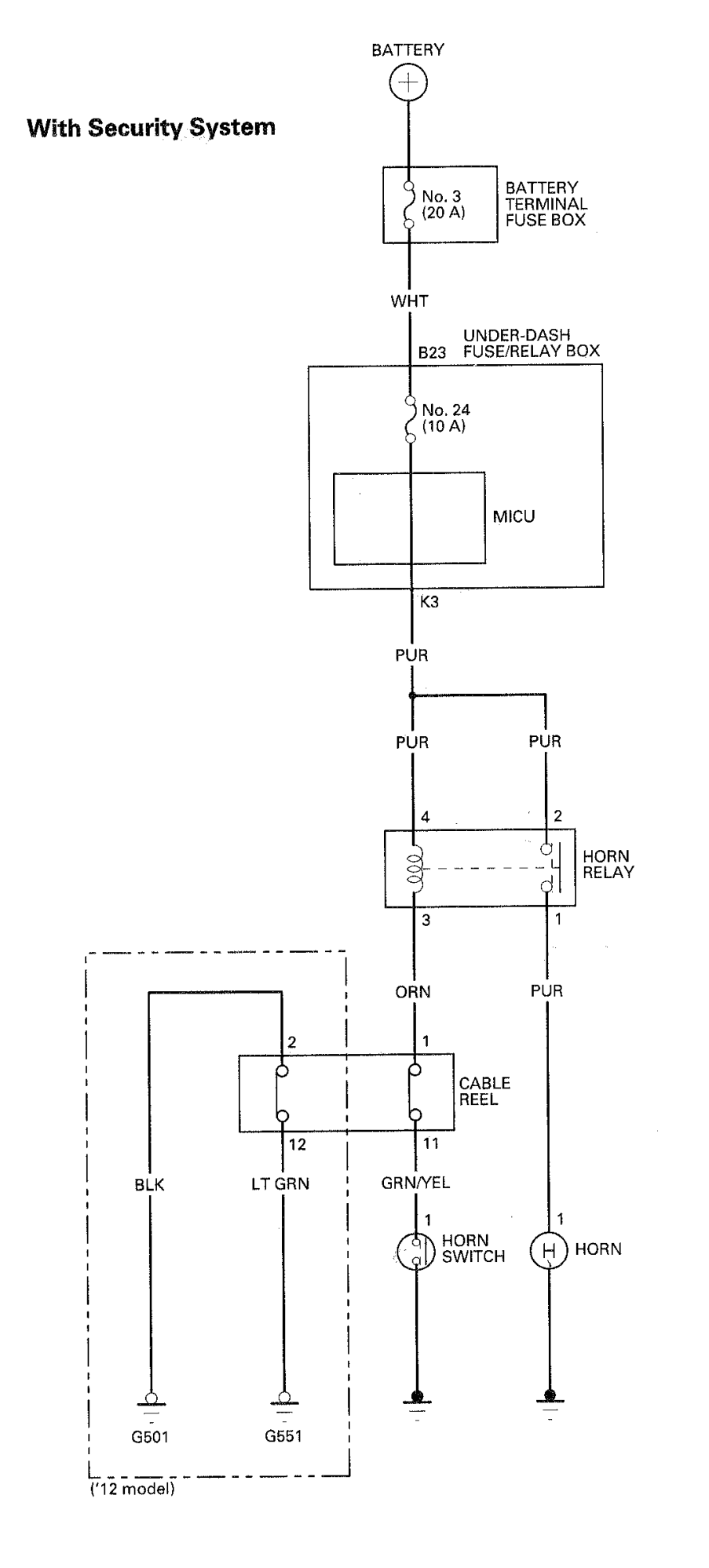

Fig 1: Identifying Horns - Circuit Diagram (With Security)

G05959979

Courtesy of AMERICAN HONDA MOTOR CO., INC.
