Auxiliary Under-Dash Fuse Box

AUXILIARY UNDER-DASH FUSE/RELAY BOX TABLE

Fuse Number Amps Component(s) or Circuit(s) Protected
1 30 A Audio unit(1), Navigation unit(2), HandsFreeLink control unit (With HandsFreeLink system)(3)
2 - Not used
(1) Without Navigation system
(2) With Navigation system
(3) 2012 Model

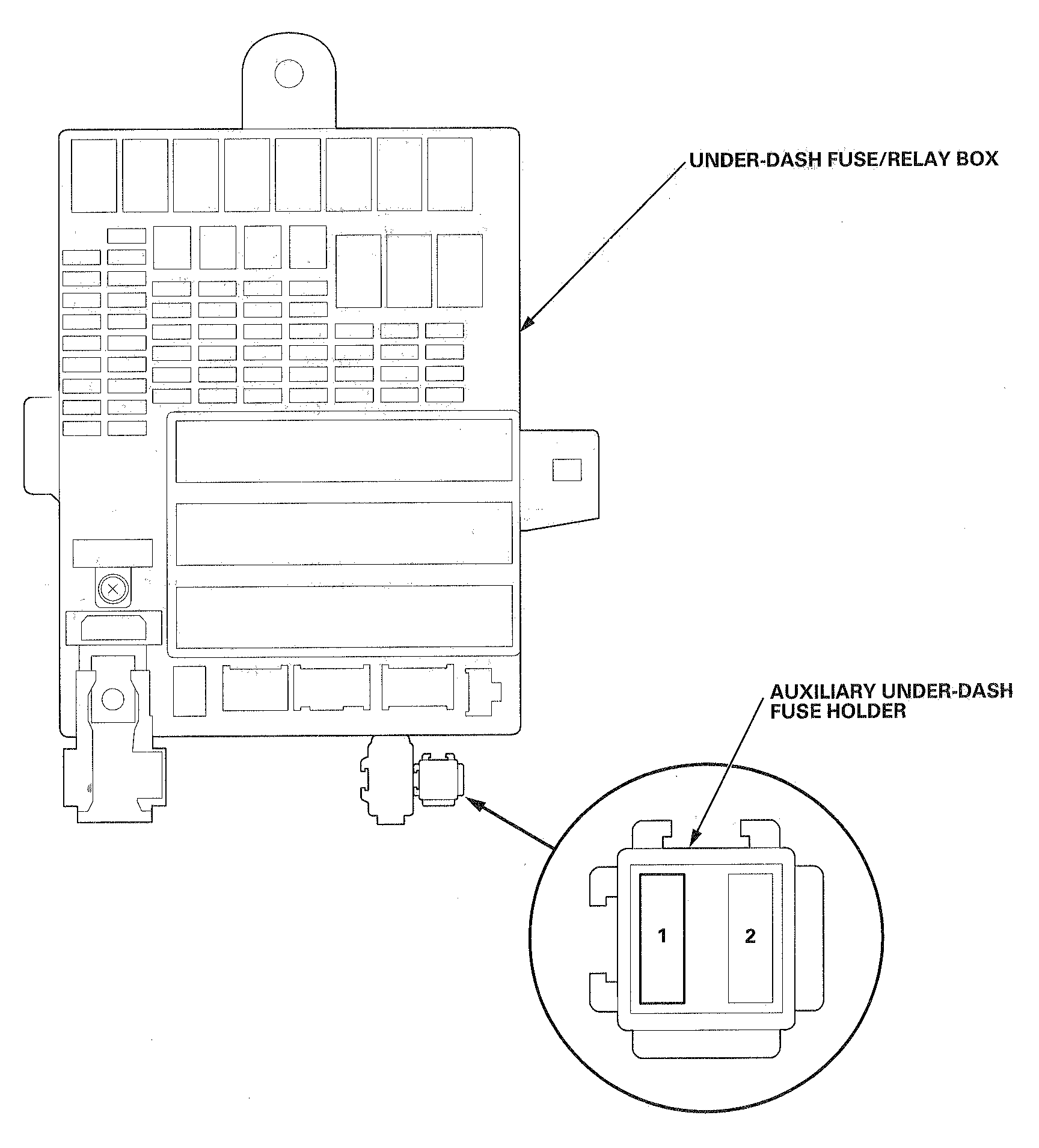

Fig 1: Locating Auxiliary Under-Dash Fuse Holder
G00509557Courtesy of AMERICAN HONDA MOTOR CO., INC.
