Glove Box Removal/Installation

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION  ).

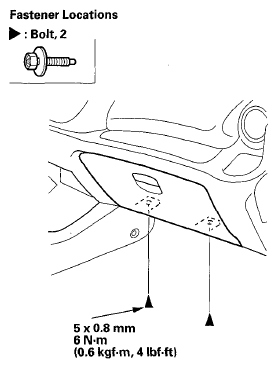

2. Remove the bolts.
   Fig 1: Passenger's Dashboard Undercover & Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

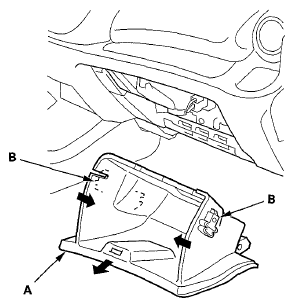

3. While holding the glove box (A), release the glove box stops (B) on each sides from the dashboard by pushing them inward, then lower the glove box.
   Fig 2: Releasing Glove Box Stops On Dashboard Sides

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the glove box in the reverse order of removal.
