Tire Pressure Monitoring System
>>
Component Location Index
Component Location Index

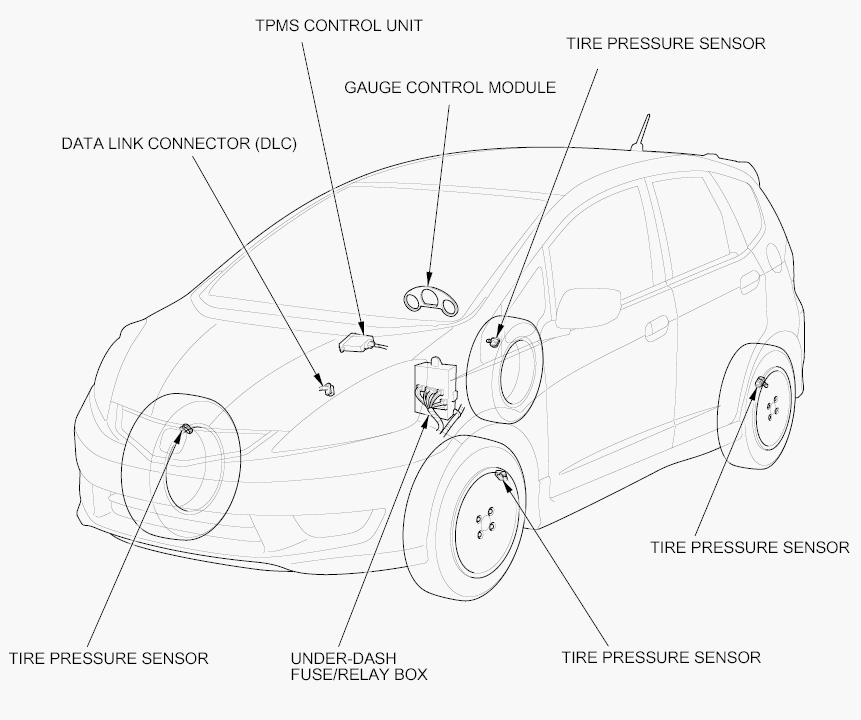

Fig 1: Identifying TPMS Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
