Oil Separator

Oil emission from the A/C compressor to the A/C line is reduced by placing the oil separator in the A/C compressor. This results in a thinner oil film inside of the heat exchangers (A/C condenser and evaporator). Air conditioning efficiency is increased without sacrificing engine performance.

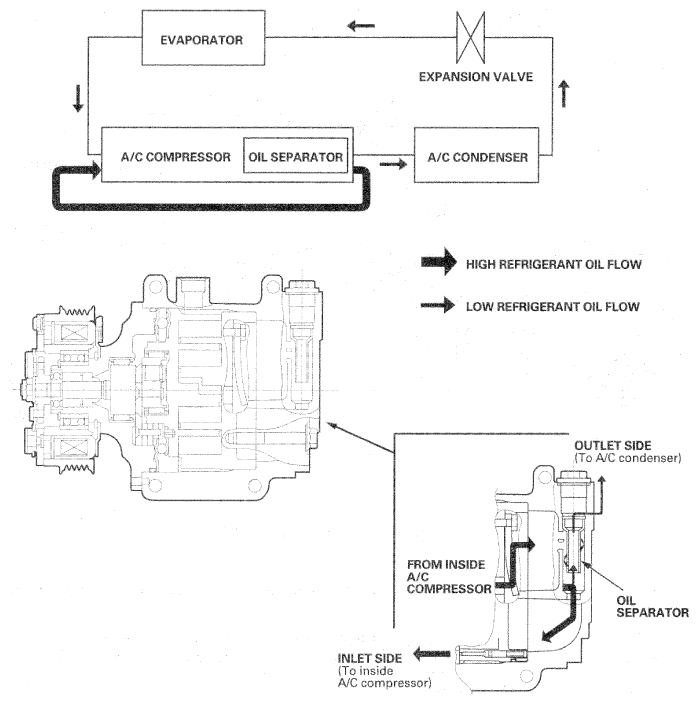

Fig 1: Oil Separator Communication Diagram
G06953603Courtesy of AMERICAN HONDA MOTOR CO., INC.
