Component Location Index

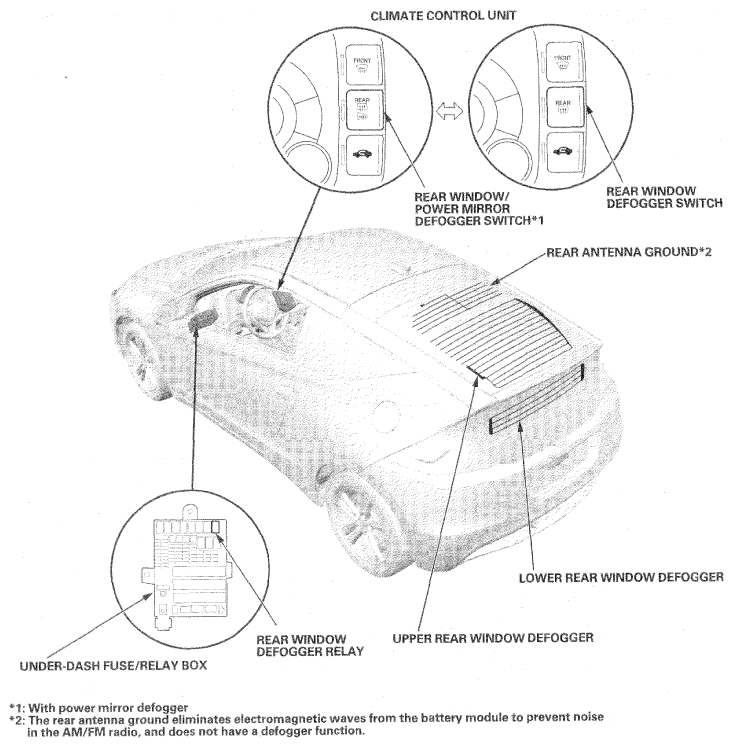

Fig 1: Rear Window Defogger Component Location

G06954178

Courtesy of AMERICAN HONDA MOTOR CO., INC.
