CR-Z Base, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
HANDSFREELINK System
>>
Circuit Diagram
Circuit Diagram

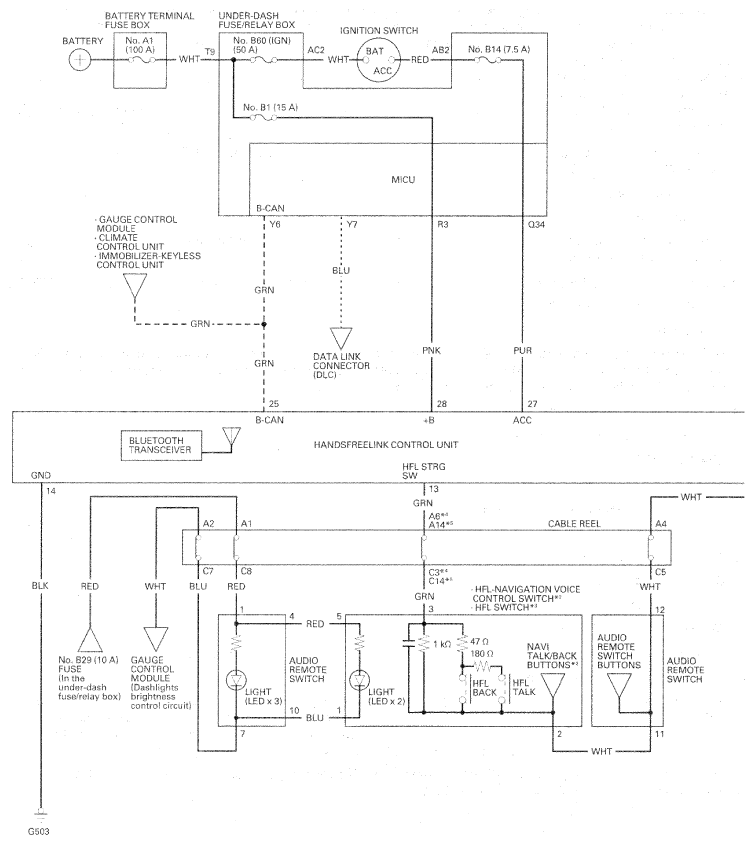

Fig 1: Handsfreelink System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

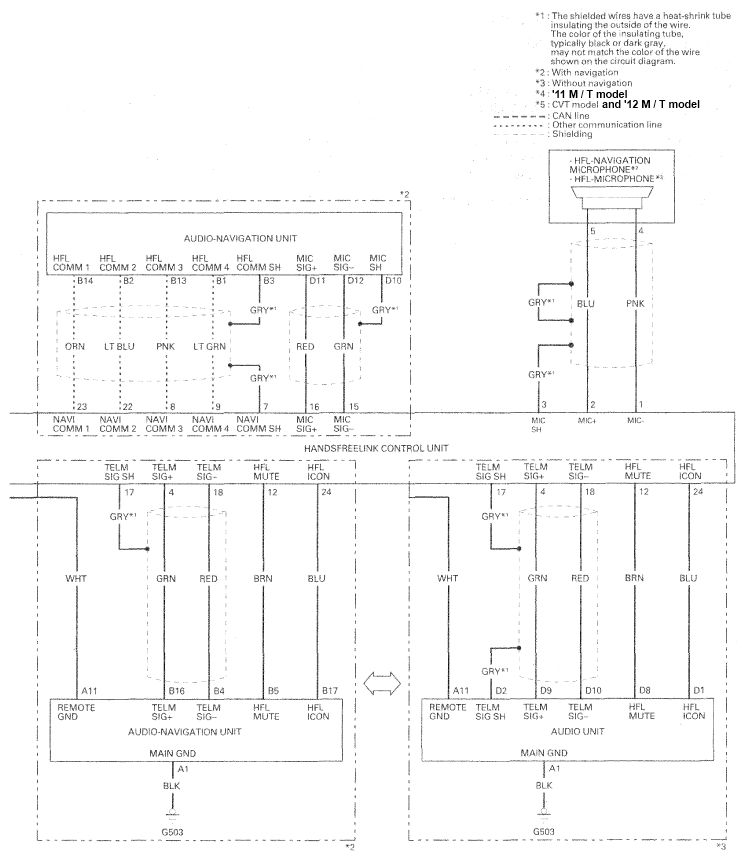

Fig 2: Handsfreelink System - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
