A/T Gear Position Indicator Panel Trim Replacement
- Apply the parking brake, and move the shift lever to N.

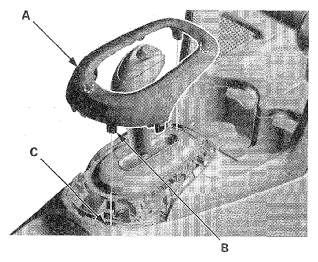

- Wrap the end of a thin blade screwdriver with tape, and pry up the A/T gear position indicator panel trim (A) by releasing the six lock clips (B) from the center console.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Replace the A/T gear position indicator panel trim, check the lock clips for wear and damage, and replace them if necessary.
- Install the new A/T gear position indicator panel trim, and push the lock clips into the hooks (C) securely.
- Shift the shift lever to P.
