Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.

The change lever assembly has a neutral position switch. When the transmission is shifted to neutral, the shift arm pushes the steel ball of the neutral position switch and turns the switch ON. The vehicle has an Auto Idle Stop system, and the signal from the neutral position switch is one of the conditions for auto idle stop.

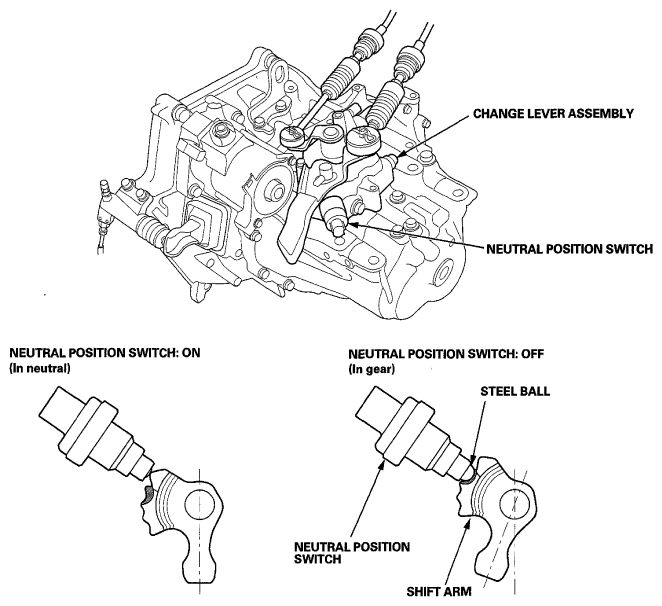

Fig 1: Identifying Change Lever Assembly And Neutral Position Switch
G06950661Courtesy of AMERICAN HONDA MOTOR CO., INC.
